Description

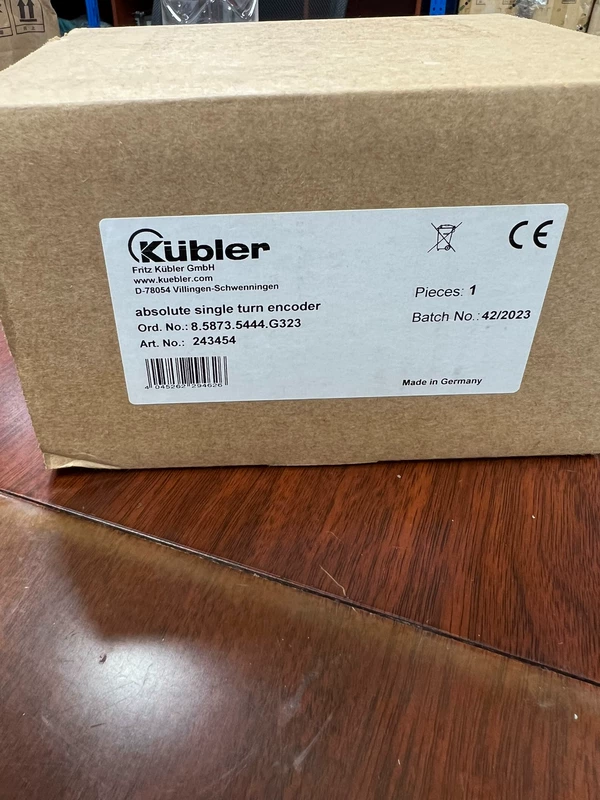

Kubler 8.5873.5444.G323 Absolute Single-Turn Encoder
High-precision absolute single-turn encoder designed for reliable position feedback in industrial automation applications.
| Brand | Kübler |
| Model | 8.5873.5444.G323 |
| Voltage | 5 V DC |
| Country of Origin | Germany |
| Weight | Approx. 150 g |
| Dimensions | 58 mm diameter x 30 mm height |
| Warranty | 2 years |
| Certifications | CE, RoHS, UL |
| SKU / MPN | 8.5873.5444.G323 |
| What’s in the box | Encoder unit, mounting hardware, user manual |
| Resolution | 12-bit (4096 positions per revolution) |
| Output Type | SSI (Synchronous Serial Interface) |
| Operating Temperature | -20°C to +85°C |
| Shaft Diameter | 10 mm |
| Protection Class | IP65 |
| Supply Current | Max. 100 mA |
| Interface | Absolute single-turn |
Key benefits: Provides accurate and reliable position feedback with robust construction for harsh industrial environments, ensuring long service life and minimal maintenance.
Typical applications: Used in robotics, conveyor systems, packaging machines, and other automation equipment requiring precise angular position measurement.
Order number: Kubler 8.5873.5444.G323 Absolute Single-Turn Encoder
Lifecycle: Active product with ongoing support and availability
Documentation: Datasheet, installation guide, and wiring diagrams available on Kübler’s official website
