Description

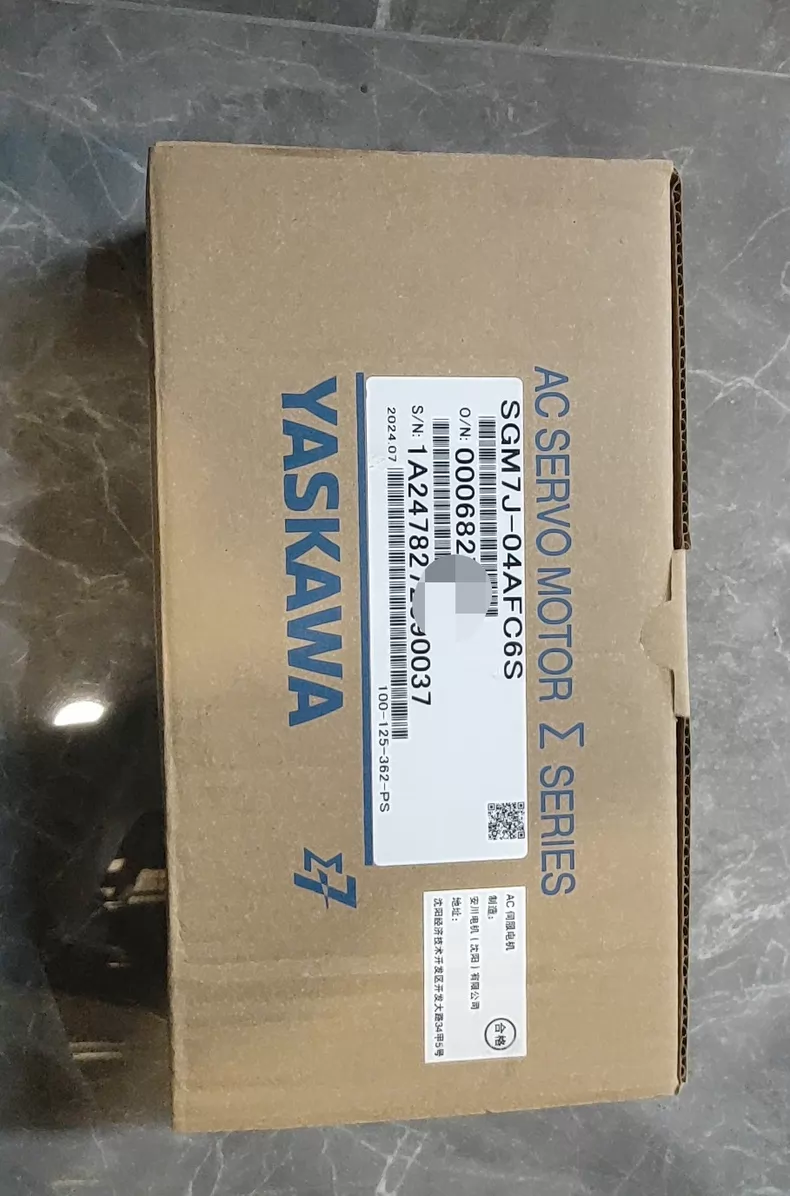

Yaskawa SGM7J-04AFC6S AC Servo Motor – Compact Performance
Compact and efficient servo motor for space-constrained applications
| Brand | Yaskawa |
| Model | SGM7J-04AFC6S |
| Voltage | 200V AC |
| Country of Origin | Japan |
| Weight | 1.2 kg |
| Dimensions | 80 mm x 80 mm x 120 mm |
| Warranty | 2 years |
| Certifications | CE, UL, RoHS |
| SKU / MPN | SGM7J-04AFC6S |
| What’s in the box | Servo motor, connector kit, manual |
| Rated Output | 400 W |
| Rated Torque | 1.27 Nm |
| Maximum Speed | 6000 rpm |
| Encoder Resolution | 24-bit absolute |
| Shaft Type | Straight shaft with keyway |
| Brake | With brake |
Key benefits: Compact size, high torque density, energy efficient
Typical applications: Assembly machines, conveyors, textile machinery
Order number: Yaskawa SGM7J-04AFC6S AC Servo Motor – Compact Performance
Lifecycle: Active
Documentation: Available on Yaskawa website
