Description

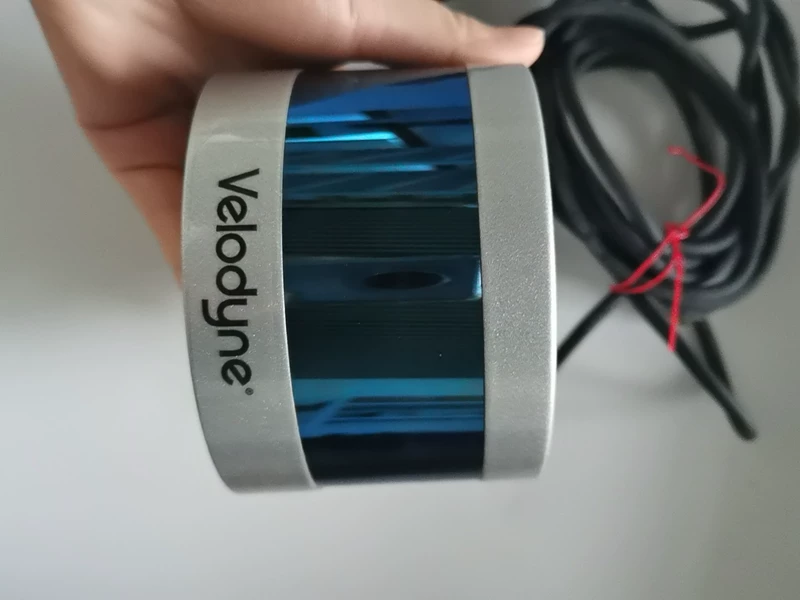

Velodyne VLP-16 Lidar Sensor – High Precision 3D Scanning
Compact and lightweight 3D lidar sensor delivering high-resolution point clouds for precise environmental mapping.
| Brand | Velodyne |
| Model | VLP-16 |
| Voltage | 12 V DC |
| Country of Origin | USA |
| Weight | 830 grams (1.83 lbs) |
| Dimensions | 103 mm diameter x 72 mm height |
| Warranty | 1 year limited warranty |
| Certifications | CE, FCC, RoHS |
| SKU / MPN | VLP-16 |
| What’s in the box | VLP-16 sensor, power and Ethernet cables, mounting bracket, user manual |
| Laser Class | Class 1 Eye-Safe |
| Range | Up to 100 meters |
| Field of View | 360° horizontal, 30° vertical |
| Rotation Rate | 5 to 20 Hz adjustable |
| Number of Channels | 16 laser channels |
| Data Output | Ethernet (UDP packets) |
Key benefits: Provides high accuracy 3D point cloud data with low power consumption and compact design, enabling real-time mapping and object detection in various environments.
Typical applications: Autonomous vehicles, robotics, mapping, surveying, industrial automation, and security systems.
Order number: Velodyne VLP-16 Lidar Sensor – High Precision 3D Scanning
Lifecycle: Active product
Documentation: User manual and technical datasheet available on Velodyne website
