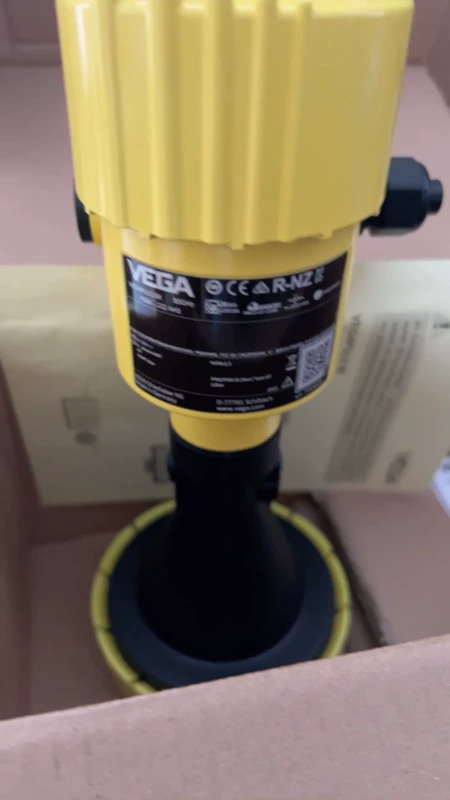

🔍 Hover to zoomHigh-precision 80GHz radar level meter for demanding industrial applications with exceptional signal focus and reliable measurement in harsh environments
| Brand | VEGA |
| Model | PS6X-222 4H3 VEGAPULS 6X |
| Voltage | 9.6-35 V DC |
| Country of Origin | Germany |
| Weight | 1.8 kg |
| Dimensions | 150 x 100 x 250 mm |
| Warranty | 24 months |
| Certifications | CE, ATEX, IECEx, FM, CSA, SIL2 |
| SKU / MPN | PS6X-222 4H3 VEGAPULS 6X |
| What’s in the box | VEGAPULS 6X sensor unit, mounting bracket, quick setup guide, calibration certificate |
| Measuring Principle | 80 GHz FMCW Radar |
| Measuring Range | Up to 120 m |
| Process Temperature | -40 to +200 °C |
| Process Pressure | -1 to +40 bar |
| Output Signal | 4-20 mA/HART, Modbus, Bluetooth |
| Protection Rating | IP66/IP68 (Type 4X/6P) |
Key benefits: Non-contact measurement unaffected by dust, vapor, or turbulence; high accuracy of ±1 mm; Bluetooth wireless setup; SIL2 certified for safety applications; wide temperature and pressure range; long measuring range up to 120 m
Typical applications: Storage tank level monitoring, process vessels, silos for bulk solids, chemical reactors, wastewater treatment basins, agitator-equipped tanks, aggressive media measurement, hygienic applications in food and pharmaceutical industries
Lifecycle: Active product, expected availability 10+ years
