Description

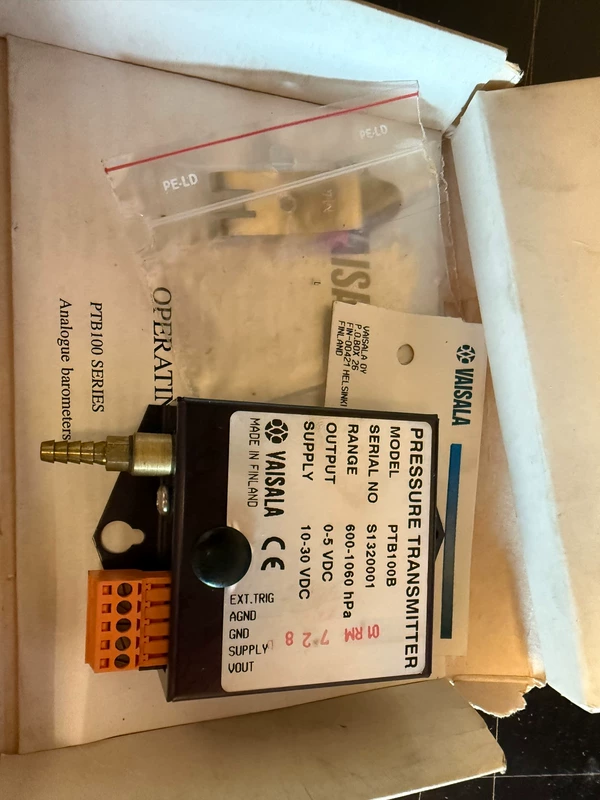

VAISALA PTB100B Pressure Sensor – High Accuracy Measurement
High-accuracy barometric pressure measurement for demanding environmental and industrial applications.
| Brand | Vaisala |
| Model | PTB100B |
| Voltage | 10-35V DC |
| Country of Origin | Finland |
| Weight | 0.1 kg |
| Dimensions | 70 x 50 x 25 mm |
| Warranty | 2 years |
| Certifications | CE, ISO 9001, NIST traceable |
| SKU / MPN | PTB100B |
| What’s in the box | Pressure sensor, connection cable, mounting accessories, calibration certificate, user manual |
| Measurement Range | 500 to 1100 hPa |
| Accuracy | ±0.15 hPa at +20°C |
| Output Signal | 0-5V or 4-20 mA (selectable) |
| Long-term Stability | ±0.1 hPa/year |
| Operating Temperature | -40°C to +60°C |
| Response Time | < 1 second (63% step change) |
Key benefits: Excellent accuracy, excellent stability, wide operating range, easy integration
Typical applications: Meteorology, weather stations, HVAC control, altitude measurement, clean rooms
Order number: VAISALA PTB100B Pressure Sensor – High Accuracy Measurement
Lifecycle: Active
Documentation: User guide, technical data sheet, application notes available at Vaisala website
Typical applications: Meteorology, weather stations, HVAC control, altitude measurement, clean rooms
Order number: VAISALA PTB100B Pressure Sensor – High Accuracy Measurement
Lifecycle: Active
Documentation: User guide, technical data sheet, application notes available at Vaisala website
