Description

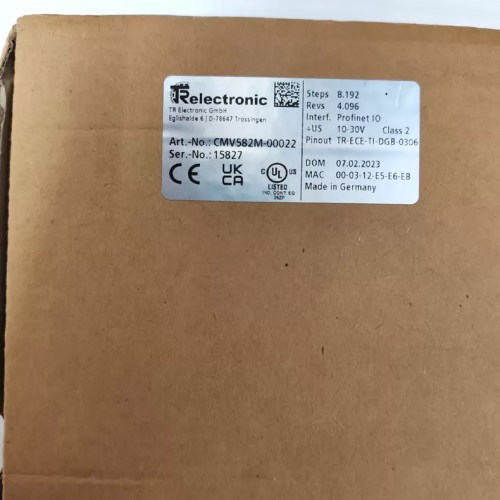

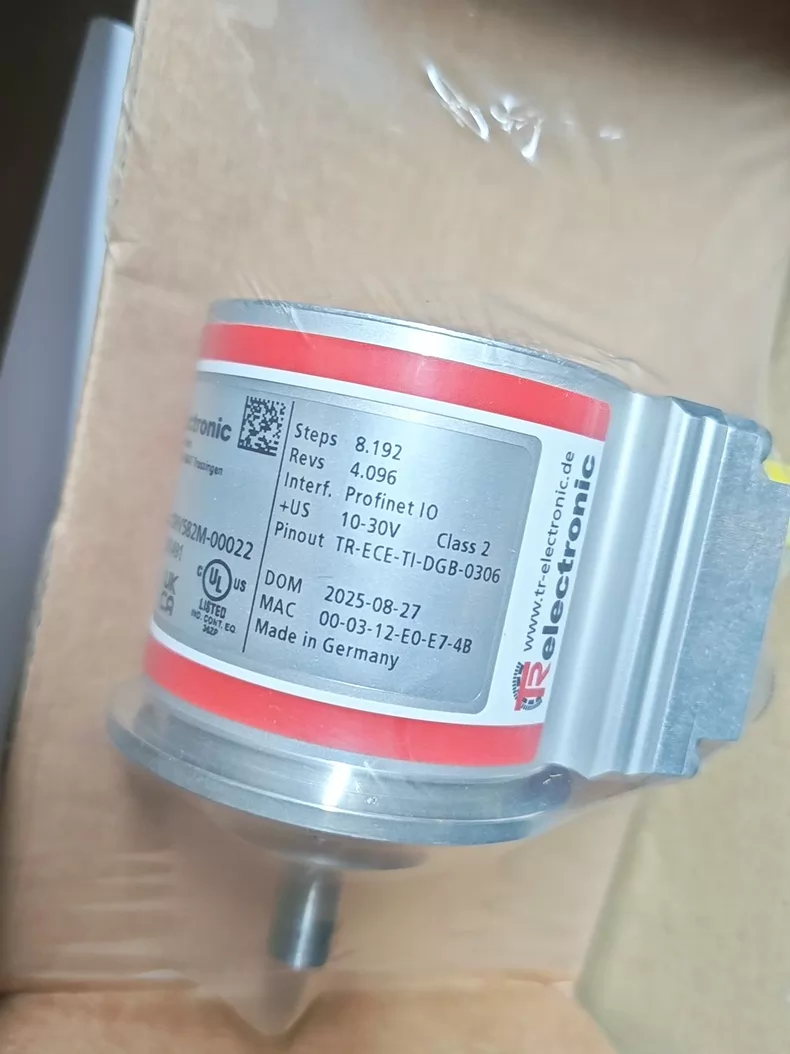

TR-Electronic CMV582M-00022 Absolute Rotary Encoder
Absolute rotary encoder with multi-turn functionality for precise position feedback
| Brand | TR-Electronic |
| Model | CMV582M-00022 |
| Voltage | 10-30 V DC |
| Country of Origin | Germany |
| Weight | 0.6 kg |
| Dimensions | 58 mm diameter x 60 mm length |
| Warranty | 2 years |
| Certifications | CE, RoHS, UL |
| SKU / MPN | CMV582M-00022 |
| What’s in the box | Encoder, mounting flange, manual |
| Resolution | Singleturn: 13 bit, Multiturn: 12 bit |
| Output Type | SSI, BiSS-C |
| Shaft Type | Solid shaft, 10 mm diameter |
| Protection Class | IP67 |
| Operating Temperature | -40°C to +85°C |
| Connection | M12 connector, 12-pin |
Key benefits: Absolute position retention, high resolution, robust housing
Typical applications: Machine tools, wind turbines, printing presses
Order number: TR-Electronic CMV582M-00022 Absolute Rotary Encoder
Lifecycle: Active
Documentation: Available on manufacturer website
