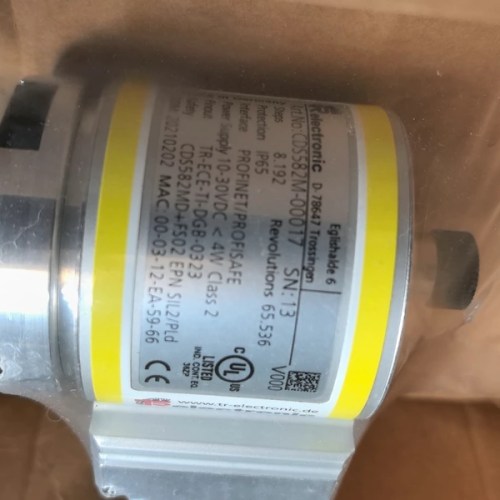

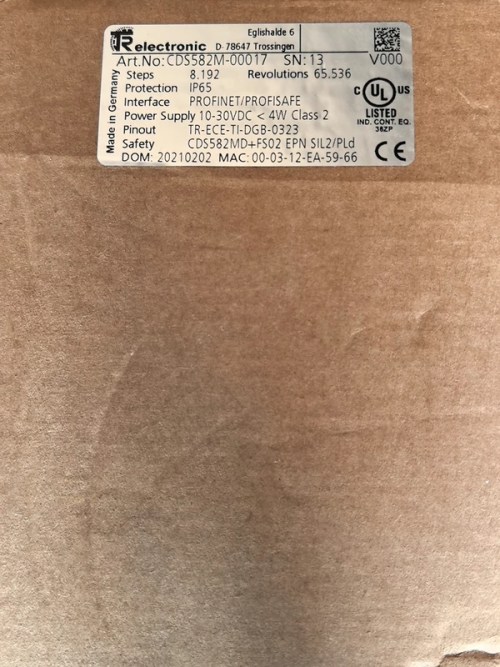

🔍 Hover to zoomHigh-precision 17-bit absolute encoder for demanding industrial position feedback applications
| Brand | TR |
| Model | CDS582M-00017 |
| Voltage | 10-30V DC |
| Country of Origin | Germany |
| Weight | 0.35 kg |
| Dimensions | 58 mm diameter x 50 mm length |
| Warranty | 12 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | CDS582M-00017 |
| What’s in the box | Encoder unit, mounting bracket, mating connector, user manual |
| Resolution | 17-bit single-turn |
| Output Interface | SSI / BiSS |
| Shaft Type | 6 mm solid shaft |
| Protection Class | IP65 |
| Operating Temperature | -20 to +85 °C |
| Housing Material | Aluminum |
Key benefits: 17-bit single-turn resolution, robust IP65 housing, SSI/BiSS interface, wide temperature range, reliable German engineering
Typical applications: CNC machinery, servo motor feedback, packaging equipment, robotics, printing machines, automated production lines
Lifecycle: Active product with long-term availability and spare part support
Very sturdy enclosure, IP rating seems genuine. Good value for money.
Please contact us if you need product documentation or technical information.
