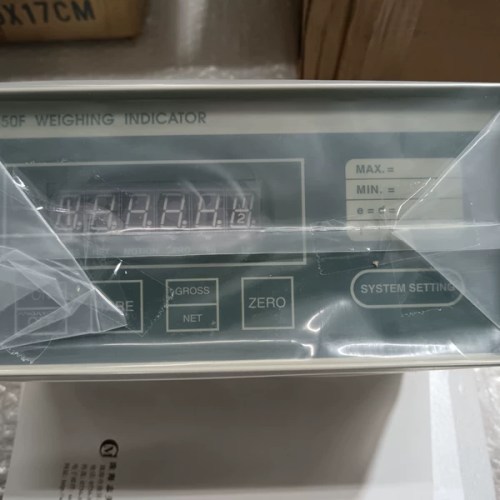

🔍 Hover to zoomReliable digital weighing indicator designed for process control, batching, and industrial weighing applications with high precision and flexible communication options.
| Brand | ZEMIC |
| Model | PT650F-1-2-1-0-0-C001 |
| Voltage | 24 V DC / 110-240 V AC |
| Country of Origin | China |
| Weight | 1.5 kg |
| Dimensions | 144 x 144 x 130 mm |
| Warranty | 12 months |
| Certifications | CE, OIML R76, RoHS |
| SKU / MPN | PT650F-1-2-1-0-0-C001 |

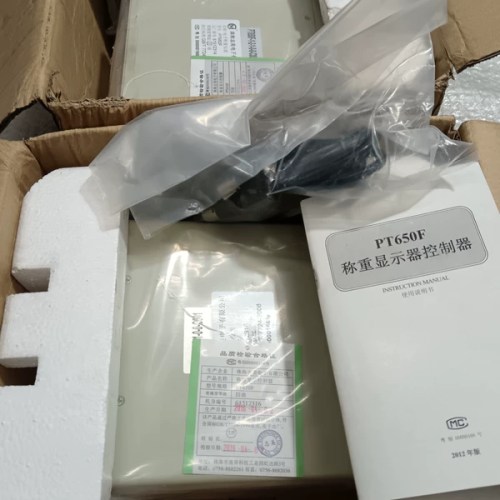

| What’s in the box | PT650F Indicator, panel mounting clamps, user manual, connector kit |
| Display Type | 7-segment LED with status indicators |
| Accuracy Class | OIML R76 Class III / 6000 divisions |
| Communication | RS-485 (Modbus RTU) + RS-232 |
| Load Cell Excitation | 5 V DC, up to 4 x 350 Ω load cells |
| Protection Class | IP65 front panel |
| Operating Temperature | -10°C to +40°C |
Key benefits: High-resolution A/D converter, multi-range calibration, Modbus communication support, robust IP65 front panel, simple menu-driven setup, and compatibility with up to four 350Ω load cells.
Typical applications: Tank and silo weighing, filling and dosing systems, checkweighing, batching processes, hopper scales, force measurement, and industrial process automation lines.
Lifecycle: Active current production model with long-term availability and spare-part support from ZEMIC.
