🔍 Hover to zoomDedicated portable tester for verifying ABB Tmax XT circuit breaker trip units and protection functions in field conditions
| Brand | ABB |
| Model | 1SDA066989R1 |
| Voltage | Battery powered (compatible with breakers up to 690V AC) |
| Country of Origin | Italy |
| Weight | 0.8 kg |
| Dimensions | 220 x 130 x 55 mm |
| Certifications | CE, IEC, RoHS |
| SKU / MPN | 1SDA066989R1 |

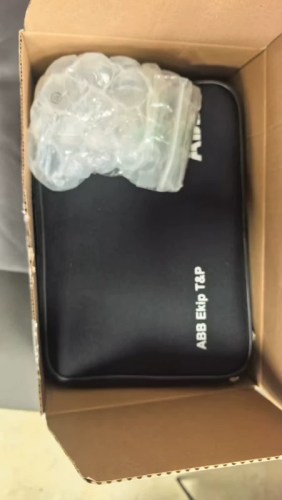

| What’s in the box | Switch Tester unit, connection cables, carrying case, user manual |
| Compatibility | ABB Tmax XT1-XT4 molded case circuit breakers |
| Function | Trip unit testing and protection function verification |
| Display | LCD with status indicators |
| Power Supply | Internal rechargeable battery |
| Interface | Plug-in connector for Ekip trip units |
| Operating Temperature | -10°C to +55°C |
Key benefits: Quick and accurate trip unit verification, portable handheld design, dedicated ABB compatibility, reduces commissioning time, ensures protection system reliability, easy-to-use interface
Typical applications: Circuit breaker commissioning, periodic protection system testing, maintenance verification in switchboards, field service diagnostics, Tmax XT breaker troubleshooting
Lifecycle: Active product, supported within ABB Sace Tmax XT family ecosystem
Good technical parameters, exactly as datasheet. Easy to commission.
Please contact us if you need product documentation or technical information.
