Description

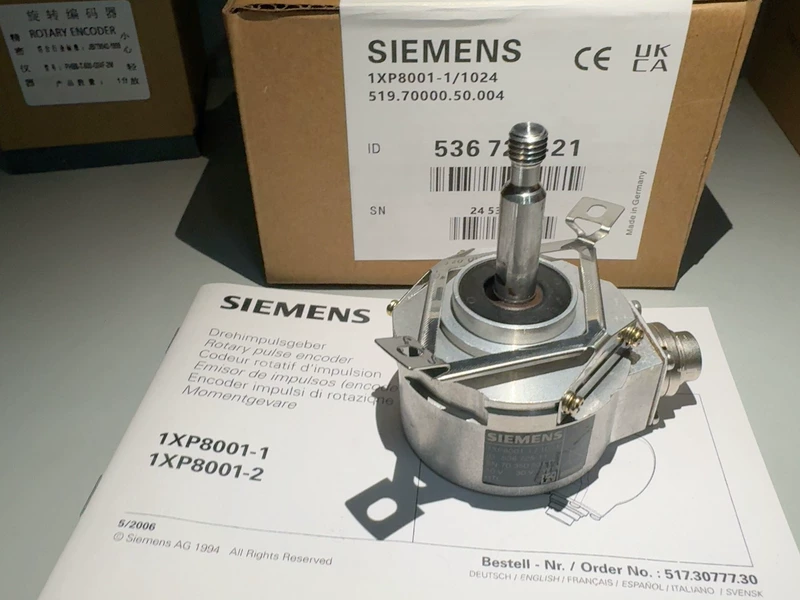

Siemens Encoder 1XP8001-1/1024 Model for Precise Position…
High-precision position feedback for motion control systems
| Brand | Siemens |
| Model | 1XP8001-1/1024 |
| Voltage | 5V DC |
| Country of Origin | Germany |
| Weight | 0.3 lbs |
| Dimensions | 2.5 x 2.5 x 1.5 inches |
| Warranty | 2-year limited warranty |
| Certifications | CE, RoHS |
| SKU / MPN | 1XP8001-1/1024 |
| What’s in the box | Encoder, mounting bracket, connection cable |
| Resolution | 1024 pulses per revolution |
| Output Type | Incremental |
| Shaft Diameter | 6mm |
| Operating Temperature | -20°C to +85°C |
| Protection Class | IP65 |
| Electrical Connection | Radial M12 connector |
Key benefits: Accurate measurement, robust design, easy integration
Typical applications: CNC machines, robotics, packaging equipment
Order number: Siemens Encoder 1XP8001-1/1024 Model for Precise Position…
Lifecycle: Active
Typical applications: CNC machines, robotics, packaging equipment
Order number: Siemens Encoder 1XP8001-1/1024 Model for Precise Position…
Lifecycle: Active
