Description

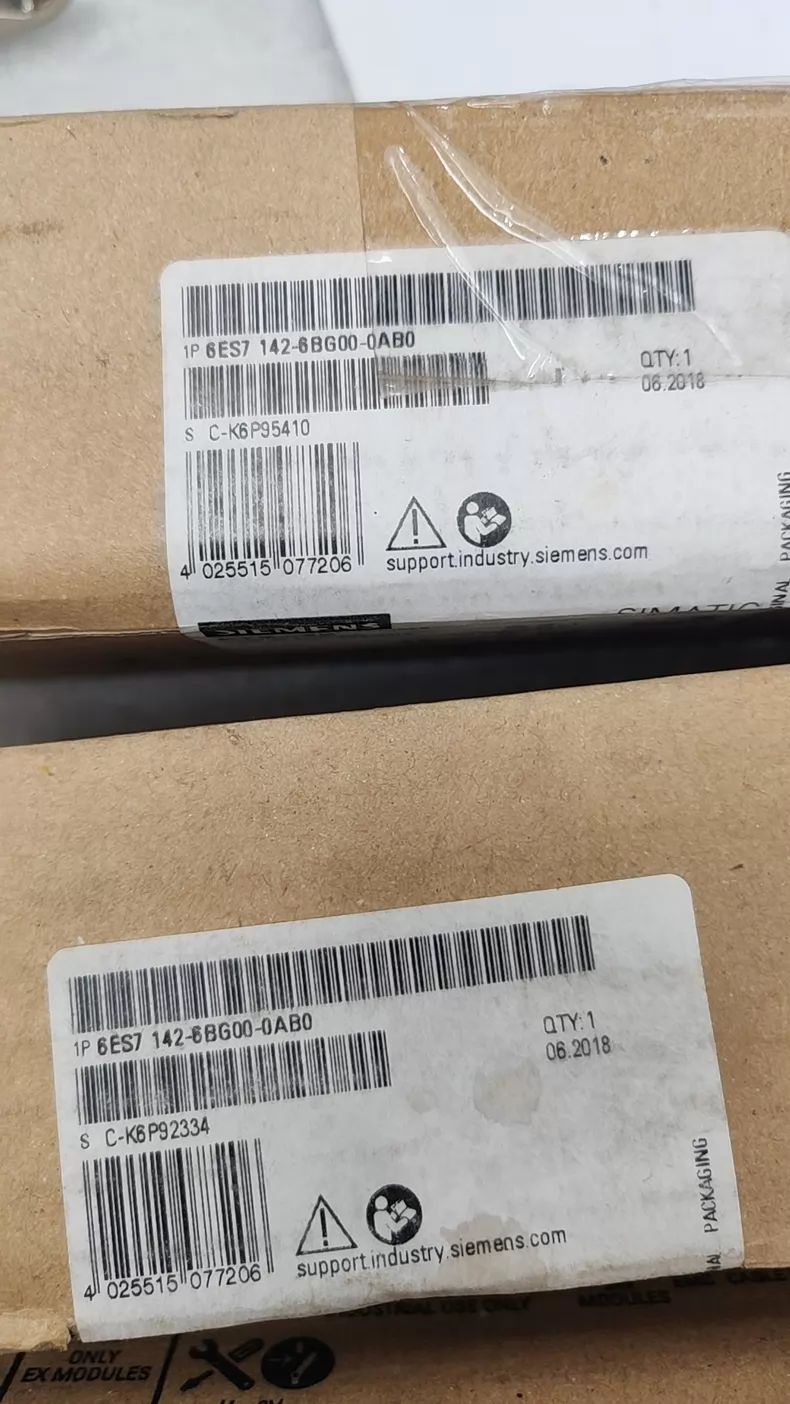

Siemens 6ES7142-6BG00-0AB0 SIMATIC ET200SP Digital Output Module
High-density digital output module for precise control in ET200SP systems
| Brand | Siemens |
| Model | 6ES7142-6BG00-0AB0 |
| Voltage | 24 V DC |
| Country of Origin | Germany |
| Weight | 0.04 kg |
| Dimensions | 15 x 73 x 58 mm |
| Warranty | 1 year |
| Certifications | CE, UL, CSA, cULus |
| SKU / MPN | 6ES7142-6BG00-0AB0 |
| What’s in the box | 1 x Digital Output Module, 1 x BusAdapter |
| Number of Outputs | 4 |
| Output Type | Transistor, Sourcing |
| Output Current per Channel | 0.5 A |
| Switching Frequency | 100 Hz |
| Operating Temperature | -30 to 60 °C |
| Diagnostics | Yes |
Key benefits: Compact size, fast switching, integrated diagnostics
Typical applications: Machine building, conveyor systems, process automation
Order number: Siemens 6ES7142-6BG00-0AB0 SIMATIC ET200SP Digital Output Module
Lifecycle: Active
Documentation: Not specified
