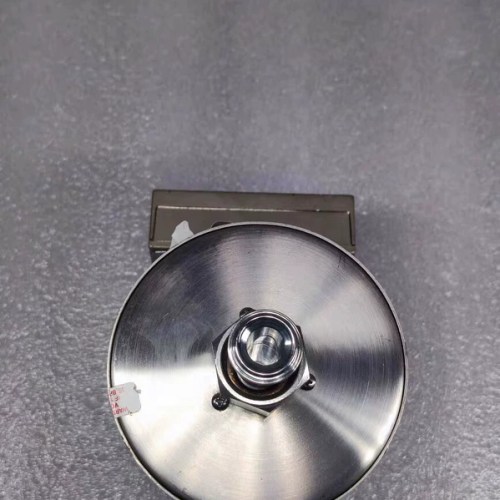

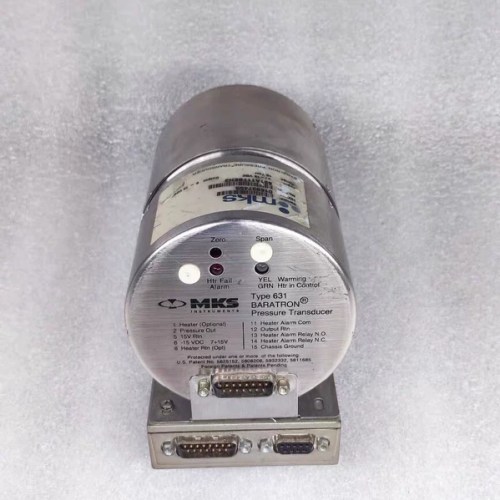

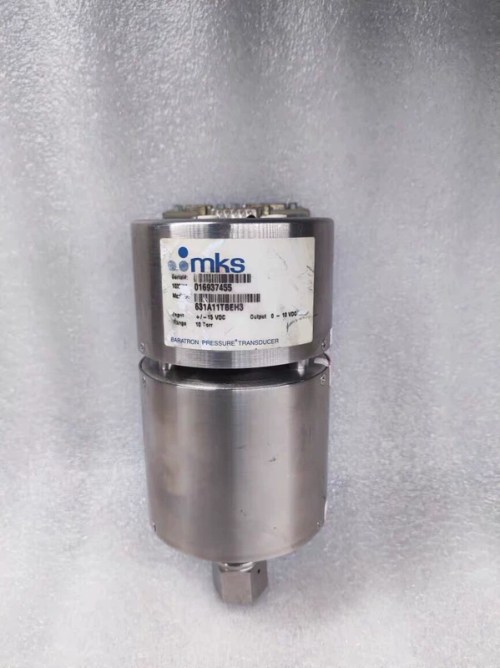

🔍 Hover to zoomHigh-accuracy capacitance manometer for precise vacuum pressure measurement in demanding process environments
| Brand | MKS |
| Model | 631A11TBEH3 |
| Voltage | ±15V DC |
| Country of Origin | USA |
| Weight | 0.5 kg |
| Dimensions | 90 x 40 x 40 mm |
| Warranty | 90 days (used item) |
| Certifications | CE, RoHS |
| SKU / MPN | 631A11TBEH3 |
| What’s in the box | Baratron pressure transducer, calibration certificate, manual |
| Sensor Type | Capacitance Manometer (Baratron) |
| Pressure Range | 0.1 to 1000 Torr |
| Accuracy | 0.25% of Reading |
| Output Signal | 0-10 V DC linear |
| Fitting Type | 1/2 inch OD tube |
| Operating Temperature | 0°C to 50°C |
Key benefits: Industry-leading 0.25% accuracy, excellent long-term stability, corrosion-resistant Inconel sensor, wide measurement range, reliable performance in vacuum processes
Typical applications: Semiconductor wafer fabrication, thin-film deposition systems, vacuum coating, optical coating, research laboratories, plasma etching, vacuum furnace processes
Lifecycle: Mature product, long-term availability through MKS service and replacement channels
