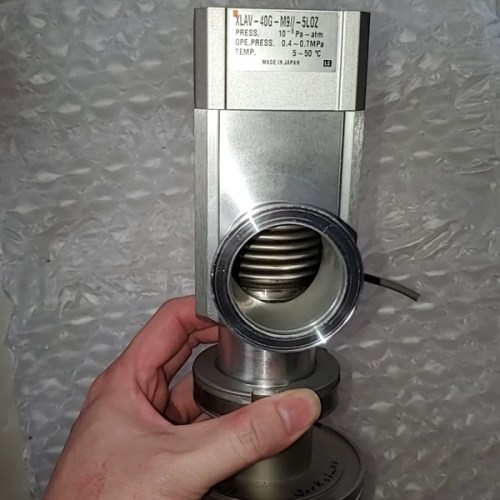

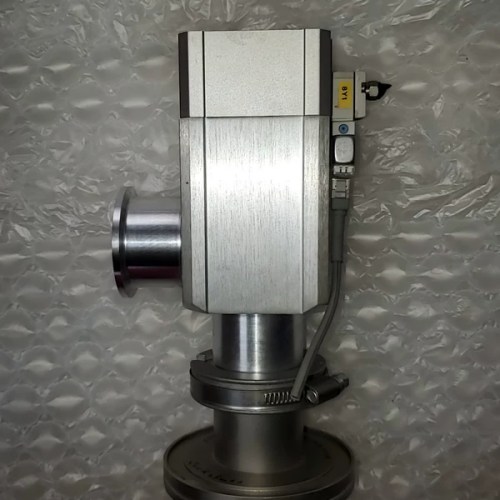

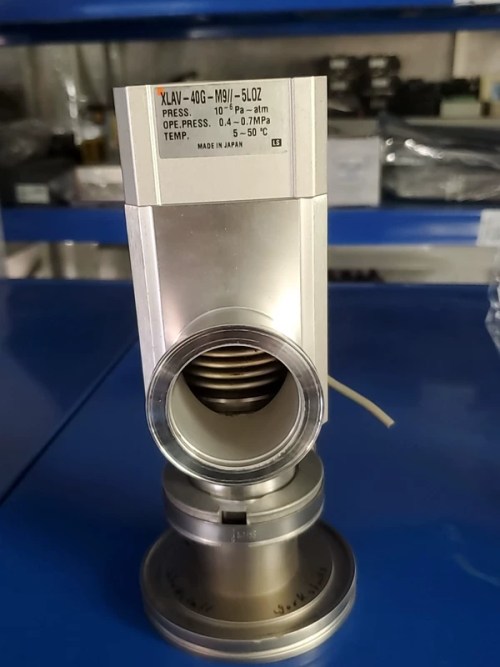

π Hover to zoomReliable high vacuum angle valve designed for precise flow control in demanding vacuum applications with low leakage and long service life.
| Brand | SMC |
| Model | XLAV-40G-M9//-5LOZ |
| Voltage | 24V DC |
| Country of Origin | Japan |
| Weight | 1.2 kg |
| Dimensions | 80 x 50 x 120 mm |
| Warranty | 12 months |
| Certifications | CE, RoHS, ISO 9001 |
| SKU / MPN | XLAV-40G-M9//-5LOZ |
| Whatβs in the box | Valve body, solenoid coil, mounting bracket, installation manual |
| Valve Type | High Vacuum Angle Valve |
| Port Size | 40 mm (1.5 inch) |
| Operating Pressure Range | -101 kPa to 0 kPa (Vacuum) |
| Coil Voltage | 24V DC |
| Seal Material | FKM (G suffix) |
| Electrical Entry | M9 Connector Type |
Key benefits: High vacuum performance up to -101 kPa, durable FKM sealing, compact angle design, easy installation with M9 connector, suitable for clean environments, long operational life
Typical applications: Semiconductor manufacturing, vacuum packaging, load lock chambers, vacuum drying systems, vacuum transfer lines, R&D vacuum systems, analytical instruments
Lifecycle: Active production model, 7-10 years expected availability
