Description

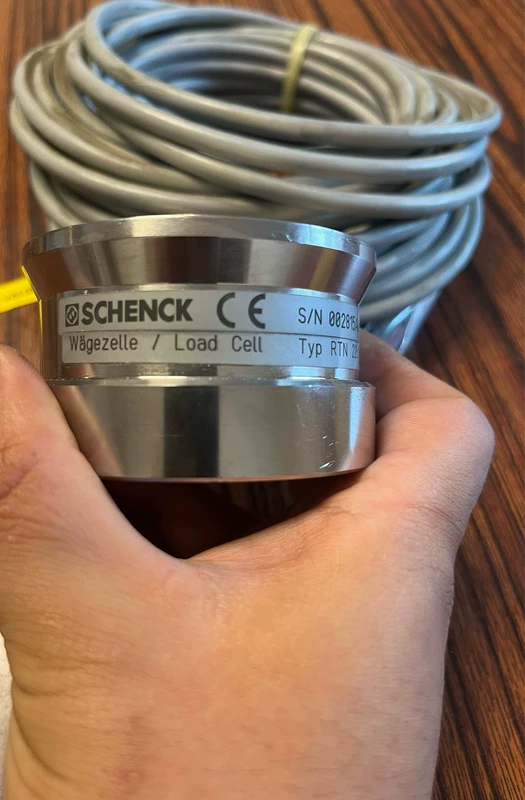

Schenck Force Sensor RTN 22t C3 High Precision Model
High-precision force sensor for demanding industrial weighing applications with 22t capacity and OIML C3 accuracy.
| Brand | Schenck |
| Model | RTN 22t C3 |
| Voltage | 5-10V DC (excitation) |
| Country of Origin | Germany |
| Weight | 20 kg |
| Dimensions | 200 x 100 x 100 mm |
| Warranty | 1 year |
| Certifications | OIML C3, ATEX, CE |
| SKU / MPN | RTN22tC3 |
| What’s in the box | Force sensor, 6-core connection cable, calibration certificate, mounting hardware |
| Capacity | 22 tons (22,000 kg) |
| Accuracy Class | C3 (OIML R60) |
| Excitation Voltage | 5-10V DC |
| Output Signal | 2.0 mV/V nominal |
| Material | Stainless steel, hermetically sealed |
| Protection Rating | IP68 |
Key benefits: Long-term stability, high overload protection, excellent linearity, immune to harsh environments
Typical applications: Industrial scales, hopper weighing, tank weighing, silo weighing, force measurement in presses
Order number: Schenck Force Sensor RTN 22t C3 High Precision Model
Lifecycle: Active
Documentation: Product datasheet, OIML certificate, installation guide, CAD model available
Typical applications: Industrial scales, hopper weighing, tank weighing, silo weighing, force measurement in presses
Order number: Schenck Force Sensor RTN 22t C3 High Precision Model
Lifecycle: Active
Documentation: Product datasheet, OIML certificate, installation guide, CAD model available
