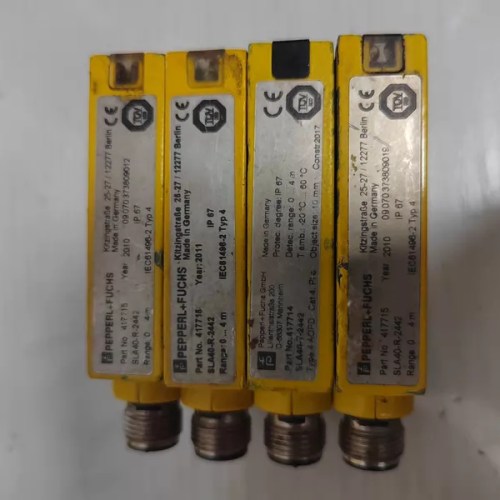

π Hover to zoomReliable Type 4 safety light array for finger and hand protection in hazardous industrial zones with high visibility diagnostics
| Brand | PEPPERL+FUCHS |
| Model | SLA40-R-2442 417716 |
| Voltage | 24V DC |
| Country of Origin | Germany |
| Weight | 2.4 kg |
| Dimensions | 2442 x 40 x 50 mm |
| Certifications | CE, UL, TUV, EN ISO 13849-1 PL e, EN 62061 SIL 3 |
| SKU / MPN | SLA40-R-2442 417716 |
| Whatβs in the box | Receiver unit, mounting brackets, connection cable, user manual |
| Product Type | Safety Light Array / Light Curtain (Receiver) |
| Protective Field Height | 2442 mm |
| Resolution | 30 mm (finger/hand detection) |
| Safety Category | Type 4 / SIL 3 / PL e |
| Output Type | OSSD (Output Signal Switching Device) |
| Operating Temperature | -10 to +55 Β°C |
Key benefits: Long 2442 mm protective field height, OSSD safety outputs, robust IP65 housing, easy alignment and installation, certified to highest safety standards
Typical applications: Machine guarding on presses, robotic cells, conveyor systems, packaging lines, assembly stations, and automated production equipment
Lifecycle: Mature legacy product, available through secondary market channels for replacement and retrofit applications
