Description

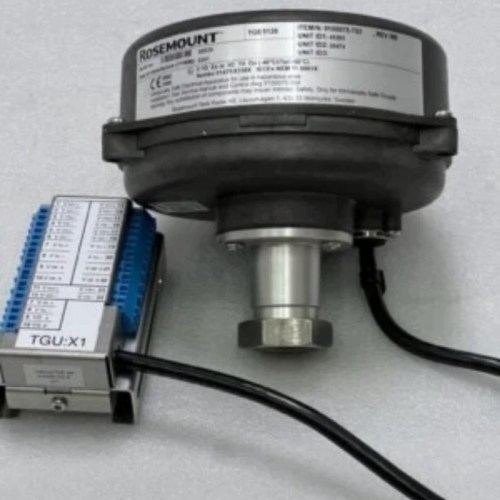

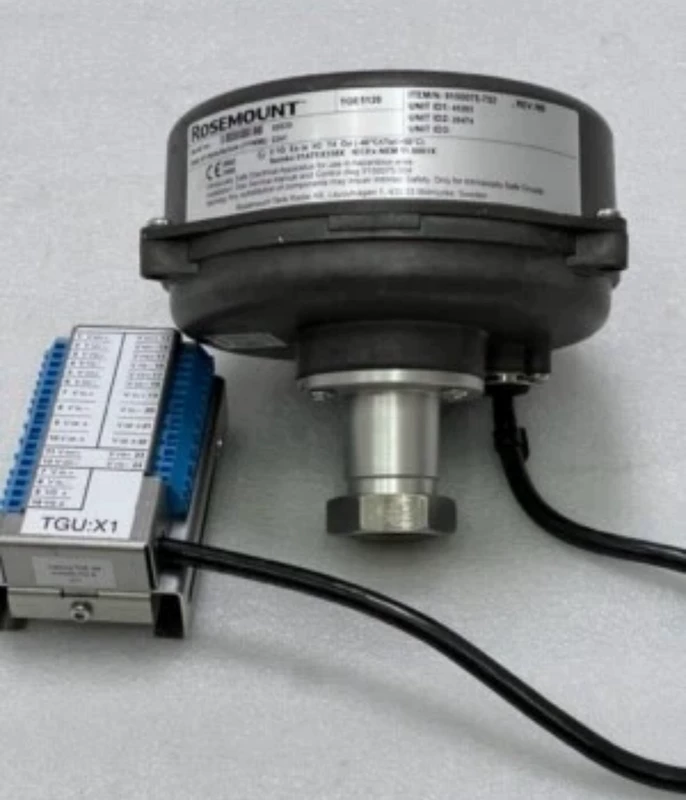

Rosemount Radar Level Meter TGE5120 Model for Accurate Measurement
High-precision radar level measurement solution designed for reliable and continuous monitoring in industrial applications.
| Brand | Rosemount |
| Model | TGE5120 |
| Voltage | 24 V DC |
| Country of Origin | USA |
| Weight | 1.5 kg (3.3 lbs) |
| Dimensions | 150 mm x 120 mm x 100 mm |
| Warranty | 2 years |
| Certifications | ATEX, IECEx, CE, FM |
| SKU / MPN | TGE5120-1001 |
| What’s in the box | Radar level meter unit, mounting bracket, user manual, calibration certificate |
| Measurement Range | 0.3 to 30 meters |
| Output Signal | 4-20 mA HART protocol |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Process Connection | 1.5″ NPT threaded |
| Accuracy | ±3 mm |
| Enclosure Rating | IP67 |
Key benefits: Provides highly accurate and reliable level measurement with non-contact radar technology, ensuring minimal maintenance and excellent performance in harsh environments.
Typical applications: Ideal for use in chemical processing, water and wastewater treatment, oil and gas storage tanks, and food and beverage industries.
Order number: Rosemount Radar Level Meter TGE5120 Model for Accurate Measurement
Lifecycle: Active
Documentation: User manual, installation guide, calibration certificate available upon request
