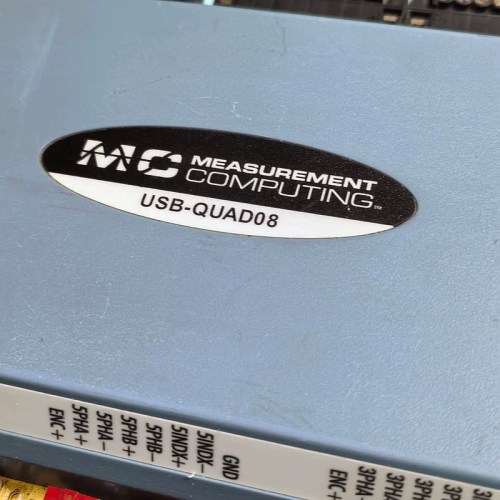

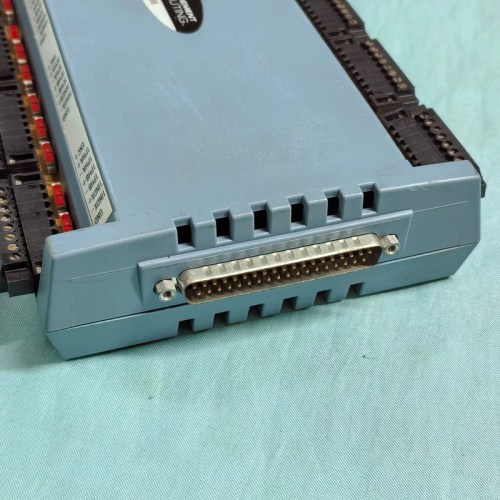

🔍 Hover to zoomHigh-performance 8-channel quadrature encoder data acquisition card for precise motion control and position measurement applications
| Brand | MCC |
| Model | USB-QUAD08 |
| Voltage | 5V DC (USB bus powered) |
| Country of Origin | USA |
| Weight | 0.18 kg |
| Dimensions | 120 x 80 x 25 mm |
| Certifications | CE, FCC, RoHS |
| SKU / MPN | USB-QUAD08 |
| What’s in the box | USB-QUAD08 data acquisition card, USB cable, quick start guide, software CD |
| Channels | 8 quadrature encoder inputs |
| Counter Resolution | 32-bit |
| Maximum Frequency | 10 MHz per channel |
| Interface | USB 2.0 High-Speed |
| Input Type | Differential RS-422 |
| Power Supply | USB bus powered, 5V DC |
Key benefits: 8 simultaneous encoder inputs, 32-bit counters, 10 MHz frequency, USB plug-and-play, differential RS-422 inputs, compact portable design
Typical applications: CNC machinery, servo motor feedback, robotics position sensing, conveyor tracking, test and measurement systems, motion control labs
Lifecycle: Discontinued but supported, used/refurbished inventory available, replacement: USB-QUAD08-PLUS
