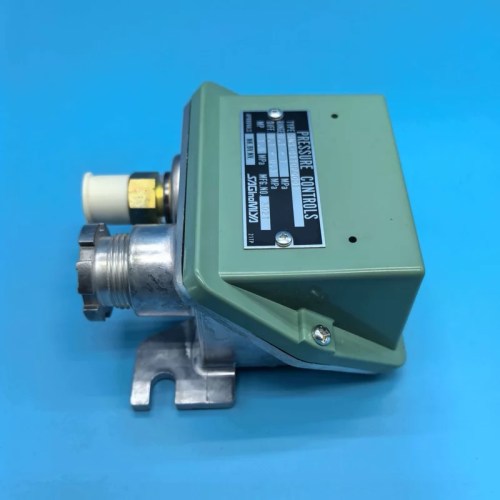

🔍 Hover to zoomReliable precision pressure switch from trusted Japanese manufacturer for industrial and HVAC control applications
| Brand | Saginomiya |
| Model | SNS-C110PQ001 |
| Voltage | 250V AC / 30V DC (contact rating) |
| Country of Origin | Japan |
| Weight | 0.35 kg |
| Dimensions | 110 x 65 x 55 mm |
| Certifications | CE, UL, CSA, RoHS |
| SKU / MPN | SNS-C110PQ001 |
| What’s in the box | Pressure switch unit, mounting bracket, instruction manual |
| Pressure Range | 0.1 to 1.0 MPa (adjustable) |
| Switch Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 5A at 250V AC / 3A at 30V DC |
| Connection Port | 1/4 inch flare / flare nut |
| Differential | 0.05 to 0.4 MPa (adjustable) |
| Max Working Pressure | 1.5 MPa |
Key benefits: High accuracy pressure detection, durable SPDT contact design, adjustable setpoint and differential, compact and easy to install, long service life with stable repeatability
Typical applications: HVAC refrigerant systems, refrigeration compressors, hydraulic circuits, pump protection, air conditioning units, industrial process control
Lifecycle: Active product, long-term availability supported by Saginomiya
