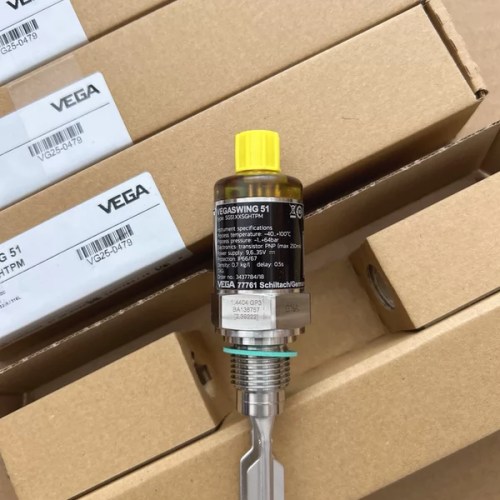

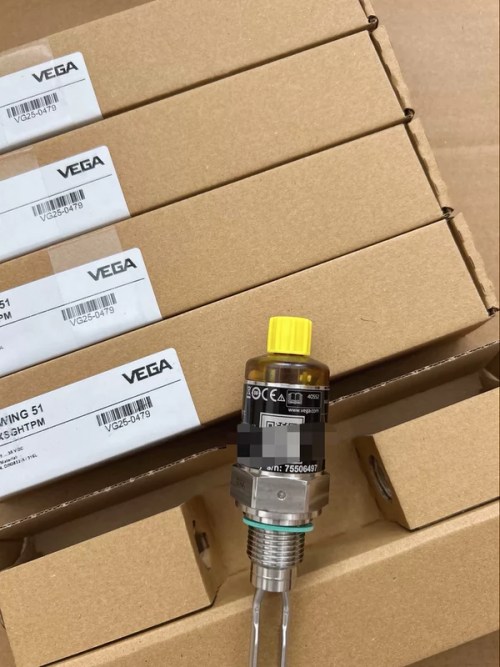

π Hover to zoomReliable point level detection for liquids and pastes in demanding industrial environments
| Brand | VEGA |
| Model | SG51.XXSGHTPM |
| Voltage | 24V DC |
| Country of Origin | Germany |
| Weight | 0.9 kg |
| Dimensions | 120x80x40 mm |
| Warranty | 24 months |
| Certifications | CE, ATEX, IEC 61508 |
| SKU / MPN | SG51.XXSGHTPM |
| Whatβs in the box | Vibrating fork level switch, mounting bracket, user manual, quick start guide |
| Process Connection | G1/2" thread |
| Material | 316L stainless steel |
| Operating Temperature | -40Β°C to +150Β°C |
| Max Pressure | 64 bar |
| Output | PNP/NPN transistor |
| Housing Protection | IP66/IP67 |
Key benefits: Self-cleaning fork design, no moving parts, immune to foam and turbulence, simple installation, SIL2 capable
Typical applications: Overfill protection in tanks, pump dry-run protection, level monitoring in pipelines, chemical and food industries
Lifecycle: Active product, long-term availability with 5+ years support
