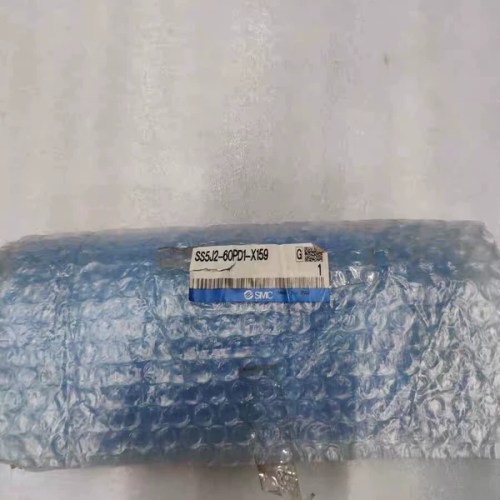

🔍 Hover to zoomHigh-density 6-station solenoid valve manifold from SMC delivering reliable pneumatic control for compact automation systems
| Brand | SMC |
| Model | SS5J2-60PD1-X159 |
| Voltage | 24V DC |
| Country of Origin | Japan |
| Weight | 1.4 kg |
| Dimensions | 230 x 75 x 50 mm |
| Warranty | 12 months |
| Certifications | CE, UL, RoHS, ISO 9001 |
| SKU / MPN | SS5J2-60PD1-X159 |
| What’s in the box | Manifold base, 6 solenoid valves, mounting hardware, user manual |
| Valve Series | JSY 5-Port Solenoid |
| Number of Stations | 6 stations |
| Port Size | M5 x 0.8 (body) / 1/8 inch (inlet/outlet) |
| Operating Pressure | 0.1 to 0.7 MPa |
| Cv Factor | 0.31 |
| Response Time | 15 ms or less |
Key benefits: Compact integrated manifold design, low power consumption 24V DC, fast response time, easy installation with pre-wired connectors, reliable Japanese engineering, suitable for multi-actuator control
Typical applications: Multi-cylinder pneumatic control, packaging machinery, assembly lines, automated production equipment, semiconductor manufacturing, robotic end-effectors, material handling systems
Lifecycle: Active product with full manufacturer support and replacement availability
