1FW6190-8WB15-5GD3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial
cable outlet; power cable 0.5m with connector size 1.5; signal cable 0.5m
with M17 connector; diameter 502 mm; length 210 mm; max. torque 2970 Nm; max.
speed 100rpm; max. current 95A eff; with PTC130 and temperature sensor Pt1000
1FW6190-8WB15-5GD3 -
1FW6190-8WB15-8FB3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet; Power and signal cable 1m; diameter 502 mm; length 210 mm; max.
torque 2970 Nm; max. speed 160rpm; max. current 130A eff; when using the
direct motors in fork heads for machine tools or robots a license for the US
patent US5584621 and the corresponding worldwide property rights may be
required with PTC130 and Temperature sensor Pt1000 1FW6190-8WB15-8FB3 -
1FW6190-8WB20-0WB3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet Power and signal cable 1m diameter 502 mm; length 270mm; max. torque
3960 Nm; max. speed 260 rpm; max. current 270A eff; when using the direct
motors in fork heads for machine tools or robots a license for the US patent
US5584621 and the corresponding worldwide property rights may be required
with PTC130 and Temperature sensor Pt1000 1FW6190-8WB20-0WB3 -
1FW6190-8WB20-2PB3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet Power and signal cable 1m diameter 502 mm; length 270mm; max. torque
3960 Nm; max. speed 200rpm; max. current 210A eff; when using the direct
motors in fork heads for machine tools or robots a license for the US patent
US5584621 and the corresponding worldwide property rights may be required
with PTC130 and Temperature sensor Pt1000 1FW6190-8WB20-2PB3 -
1FW6190-8WB20-5GC3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet 2m diameter 502 mm; Length 260 mm; max. torque 3960 Nm; max. speed
73rpm; max. current 95A eff; when using the direct motors in fork heads for
machine tools or robots a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6190-8WB20-5GC3 -
1FW6190-8WB20-5GD3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet 0.5m with connector size 1.5 or M17; diameter 502 mm; Length 260 mm;
max. torque 3960 Nm; max. speed 73rpm; max. current 95A eff; when using the
direct motors in fork heads for machine tools or robots a license for the US
patent US5584621 and the corresponding worldwide property rights may be
required with PTC130 and Temperature sensor Pt1000 1FW6190-8WB20-5GD3 -
1FW6190-8WB20-8FB3
$99,999.00(0 reviews)Статор SIMOTICS T integrated precision and power cooler; axial cable
outlet Power and signal cable 1m diameter 502 mm; Length 260 mm; max. torque
3960 Nm; max. speed 110 rpm; max. current 130A eff; when using the direct
motors in fork heads for machine tools or robots a license for the US patent
US5584621 and the corresponding worldwide property rights may be required
with PTC130 and Temperature sensor Pt1000 1FW6190-8WB20-8FB3 -
-20%

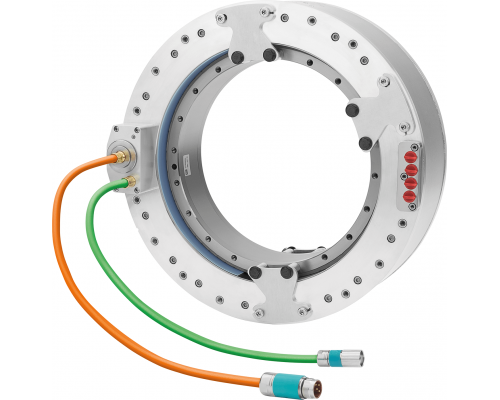

1FW6230-0TB20-5GC2
Original price was: $24,341.00.$19,472.80Current price is: $19,472.80.(0 reviews)The moment engine is built -in precision and standard cooling, a cable
tangential discharge of 2 m diameter 576 mm, length 260 mm, max. Moment 5260
HM Max. Rotation frequency 56 rpm, max. TOK 100 AEFF., When using built -in
toroidal engines in the forking heads or robots, a license for the American
patent US5584621 and the corresponding global patents may be required
1FW6230-0TB20-5GC2 -
-20%
1FW6230-0TB20-5GC3
Original price was: $24,141.71.$19,313.37Current price is: $19,313.37.(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; integrated precision and power cooler; tangential cable
outlet 2m; diameter 576mm; Length 260 mm; max. torque 5260Nm; max. speed
56rpm; max. current 100A eff; when using the direct motors in fork heads for
machine tools or robots a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6230-0TB20-5GC3 -
-20%
1FW6230-0VB15-5GC3
Original price was: $23,009.85.$18,407.88Current price is: $18,407.88.(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; integrated precision and power cooler; radial cable
outlet; Diameter 576 mm; length 210 mm; max. torque 3950Nm; max. speed 80rpm;
max. current 100A eff; when using the direct motors in fork heads for machine
tools or robots a license for the US patent US5584621 and the corresponding
worldwide property rights may be required with PTC130 and Temperature sensor
Pt1000 1FW6230-0VB15-5GC3 -
1FW6230-8RA05-0AA0
$99,999.00(0 reviews)Rotor for the engine 1FW6230-0. B05 -……, diameter 576mm, length 110
mm, when using engines with direct power and connecting vilchen heads for
processing machines and robots, a license for the use of the US Patent may
require a license according to the American patent US5584621 and the
corresponding world legal norms 1FW6230-8RA05-0AA0 -
1FW6230-8RA07-0AA0
$99,999.00(0 reviews)Rotor for the engine 1FW6230-0. B07 -……, diameter 576mm, length 130
mm, when using engines with direct power and connecting through forcense
heads for processing machines and robots, a license for the use of the US
Patent may require a license according to the American patent US5584621 and
the corresponding world legal norms 1FW6230-8RA07-0AA0
