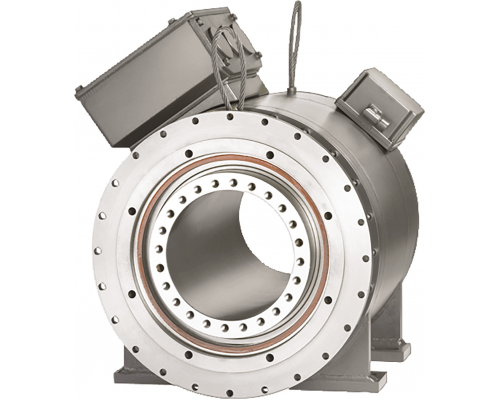

1FW3203-3BP62-8AS0-Z M02
$99,999.00(0 reviews)M02: Drilled Cable Gland 2xm63x Simotics T Complete 1.5;
Removable Die Plate for GK Mining engine 1FW3 603 710ob min, 51kW, 690NM,
97A, 327V 800ob min, 57kW, 800NM, 368V 860ob min, 60KW, 860NM, 95A, 396V,
396V 950ob min, 66kW, 950NM, 937v 437v water cooling sensor of absolute
values one 24 bits (AS24DQI) Installation of the sensor: coaxial IMB 14
terminal box, lifting cable towards the axial of the temperature drive
through the interface CLIC Nucleed shaft. Shaft Holder IP 55 Bearing support
standard standard 1FW3203-3BP62-8AS0-Z M02 -

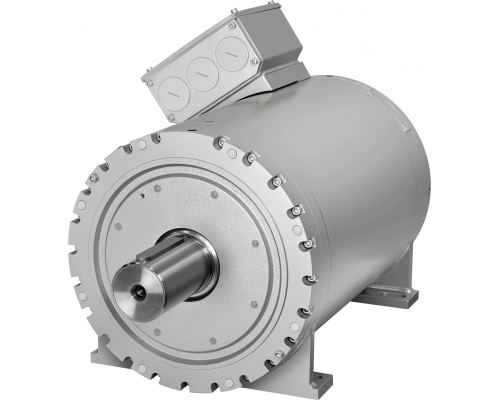

1FW3283-2CG65-5AP0-Z L
$99,999.00(0 reviews)The power cable with the connectors lengthens. 4×6+(2×1.5)
with a high -speed connection, a stkek of volups. 1.5 (SIMODRive), increased
flexibility, UL/CSA, Desina Motion-Connect 800, Dmax. = 17.8 mm Type:
6FX8002-5DQ58 length (m) = 0 10 5 0 0 0 1FW3283-2CG65-5AP0-Z L -
1FW3287-3BJ66-5AH0
$99,999.00(0 reviews)Complex Moment engine 1FW3 350 rpm, 243.7W, 6650 HM, 508A,
357V 400 rpm, 276.5 kW, 6600 HM, 504A, 405V 430 rpm, 294.9 kW, 6550 HM, 500A,
433v water coolation, VCL. The device of additional lubricant (option K40) is
an absolute single -turn 24 bit (AS24DQI) sensor installation: coaxial iba 3
paws; Legs per day terminal box, cable removal transversely to the right
temperature sensor through the interface of the CLIQ drive of a continuous
shaft half the balance of the balancing degree of protection IP54 Bearing
support standard 1FW3287-3BJ66-5AH0 -
-20%
1FW3287-3EM66-5DH0-Z X01
Original price was: $4,849.19.$3,879.35Current price is: $3,879.35.(0 reviews)Absolute Encoder 2048 S/R, 4096 Complete Minute Rev. Multiturn
(ENCODER engine 1FW3 520 rpm, AM2048S/R) 337.6 kW, 6200 HM, 713A, 341V 600
rpm, 380.1 kW, 6050 HM, 696A, 389v 650 rpm, 401.6 kW, 5900 HM, 678A, 418V
Water cooling, v. The device of additional lubrication (option K40)
Installation of the sensor: coaxial IB 3 paws; Legs per day terminal box,
cable removal transversely to the right temperature sensor PT1000 continuous
shaft half a key of the balancing, the degree of protection IP54 bearing support
is standard, 1FW3287-3EM66-5DH0-Z X01 -
1FW6050-0TB03-0FC3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; Integrated power cooler; tangential cable outlet; Bare
cable ends 2 m; Diameter 159mm; Length 89mm Max. torque 34.4 Nm; max. speed
940rpm; max. current 7.6A eff; when using the direct motors in fork heads for
Machine tools or robots, a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6050-0TB03-0FC3 -
1FW6050-0TB03-0FD3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components
3-phase synchronous motor; Integrated power cooler; tangential cable outlet;
power cable 0.5m with connector size 1; signal cable 0.5m with M17 connector;
diameter 159mm; Length 89mm; max. torque 34.4Nm; max. speed 940rpm; max.
current 7.6A eff; when using the direct motors in fork heads for Machine
tools or robots, a license for the US patent US5584621 and the corresponding
worldwide property rights may be required with PTC130 and Temperature sensor
Pt1000 1FW6050-0TB03-0FD3 -
1FW6050-0TB05-0FC3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; Integrated power cooler; tangential cable outlet; Bare
cable ends 2 m; Diameter 159mm; length 109mm Max. torque 57.5 Nm; max. speed
520rpm; max. current 7.6A eff; when using the direct motors in fork heads for
Machine tools or robots, a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6050-0TB05-0FC3 -
1FW6050-0TB05-0FD3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components
3-phase synchronous motor; Integrated power cooler; tangential cable outlet;
power cable 0.5m with connector size 1; signal cable 0.5m with M17 connector;
diameter 159mm; length 109mm; max. torque 57.5Nm; max. speed 520rpm; max.
current 7.6A eff; when using the direct motors in fork heads for Machine
tools or robots, a license for the US patent US5584621 and the corresponding
worldwide property rights may be required with PTC130 and Temperature sensor
Pt1000 1FW6050-0TB05-0FD3 -
1FW6050-0TB07-0FC3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; Integrated power cooler; tangential cable outlet; Bare
cable ends 2 m; Diameter 159mm; length 129mm Max. torque 80.6 Nm; max. speed
340rpm; max. current 7.6A eff; when using the direct motors in fork heads for
Machine tools or robots, a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6050-0TB07-0FC3 -
1FW6050-0TB07-0FD3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components
3-phase synchronous motor; Integrated power cooler; tangential cable outlet;
power cable 0.5m with connector size 1; signal cable 0.5m with M17 connector;
diameter 159mm; length 129mm; max. torque 80.6Nm; max. speed 340rpm; max.
current 7.6A eff; when using the direct motors in fork heads for Machine
tools or robots, a license for the US patent US5584621 and the corresponding
worldwide property rights may be required with PTC130 and Temperature sensor
Pt1000 1FW6050-0TB07-0FD3 -
1FW6050-0TB07-0KC3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components 3-phase
synchronous motor; Integrated power cooler; tangential cable outlet; Bare
cable ends 2 m; Diameter 159mm; length 129mm Max. torque 81.2 Nm; max. speed
880rpm; max. current 14A eff; when using the direct motors in fork heads for
Machine tools or robots, a license for the US patent US5584621 and the
corresponding worldwide property rights may be required with PTC130 and
Temperature sensor Pt1000 1FW6050-0TB07-0KC3 -
1FW6050-0TB07-0KD3
$99,999.00(0 reviews)SIMOTICS T высокомоментный электродвигатель; components
3-phase synchronous motor; Integrated power cooler; tangential cable outlet;
power cable 0.5m with connector size 1; signal cable 0.5m with M17 connector;
diameter 159mm; length 129mm; max. torque 81.2Nm; max. speed 880rpm; max.
current 14A eff; when using the direct motors in fork heads for Machine tools
or robots, a license for the US patent US5584621 and the corresponding
worldwide property rights may be required with PTC130 and Temperature sensor
Pt1000 1FW6050-0TB07-0KD3
