Good technical parameters, exactly as datasheet. Easy to commission.

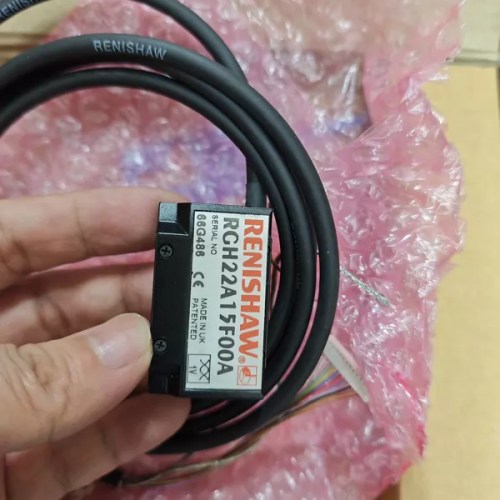

π Hover to zoomHigh-precision optical grating scale readhead delivering reliable non-contact linear position feedback for demanding machine tool and motion control applications
| Brand | Renshiaw |
| Model | RGH22A15F00A |
| Voltage | 5V DC |
| Country of Origin | China |
| Weight | 0.15 kg |
| Dimensions | 38 x 16 x 11 mm |
| Certifications | CE, RoHS |
| SKU / MPN | RGH22A15F00A |

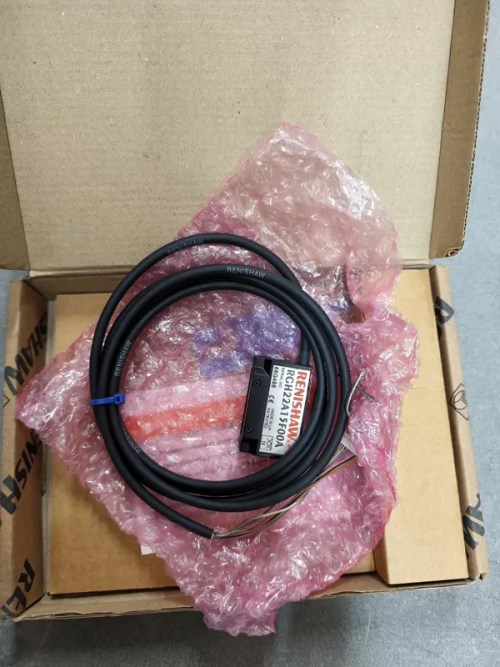

| Whatβs in the box | Grating Scale Readhead, mounting hardware, calibration certificate, user manual |
| Resolution | 1 Β΅m |
| Output Signal | RS422 (TTL differential) |
| Reference Mark | Yes (integrated) |
| Maximum Speed | 60 m/min |
| Operating Temperature | 0Β°C to 50Β°C |
| Protection Class | IP64 |
Key benefits: Sub-micron resolution, robust IP64 sealing, integrated reference mark, RS422 differential output for noise immunity, compact lightweight housing, fast response for high-speed axes
Typical applications: CNC machining centers, linear motion stages, precision measurement equipment, semiconductor manufacturing, coordinate measuring machines, robotics positioning systems
Lifecycle: Active product with ongoing production and long-term spare-part availability
Good technical parameters, exactly as datasheet. Easy to commission.
Please contact us if you need product documentation or technical information.
