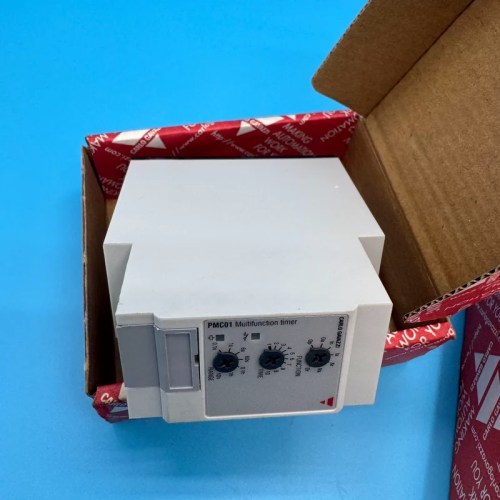

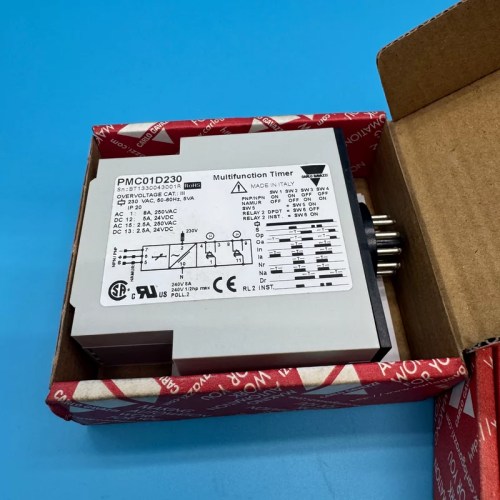

π Hover to zoomVersatile multi-function timer delivering precise timing control for industrial automation systems
| Brand | Carlo Gavazzi |
| Model | PMC01D230 |
| Voltage | 230V AC |
| Country of Origin | Italy |
| Weight | 0.15 kg |
| Dimensions | 17.5 x 60 x 81 mm |
| Certifications | CE, UL, cUL, RoHS |
| SKU / MPN | PMC01D230 |
| Whatβs in the box | Multi-function Timer unit, mounting clip, installation manual |
| Function Type | Multi-function (8 timing functions) |
| Supply Voltage | 230V AC |
| Output Type | SPDT relay, 8A |
| Time Range | 0.1s to 100h |
| Mounting | DIN Rail (35mm) |
| Operating Temperature | -20 to +60 Β°C |
Key benefits: 8 selectable timing functions, wide time range, DIN rail mounting, reliable SPDT relay output, LED status indication, compact modular design
Typical applications: Conveyor control, pump sequencing, motor protection delay, lighting control, machine start/stop timing, HVAC systems
Lifecycle: Active product, long-term availability with established Carlo Gavazzi support
Excellent support when we had integration questions. The product met our standards.
Please contact us if you need product documentation or technical information.
