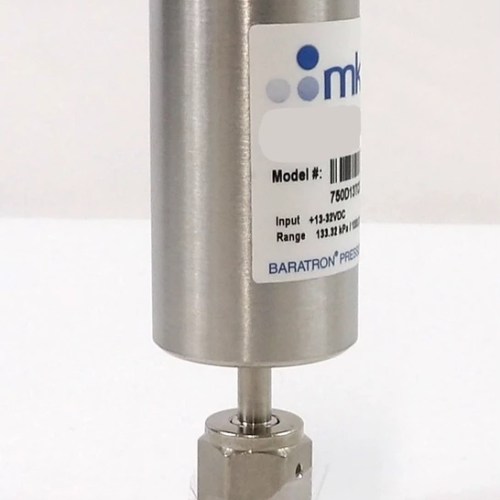

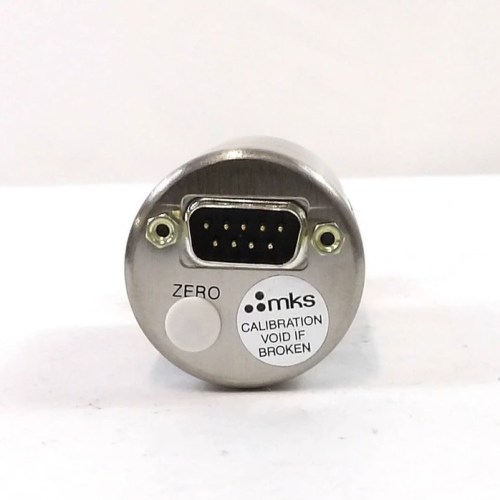

🔍 Hover to zoomHigh-accuracy capacitance manometer for reliable vacuum pressure measurement in demanding process environments
| Brand | MKS |
| Model | 750D13TCD2GA |
| Voltage | 24V DC |
| Country of Origin | USA |
| Weight | 0.45 kg |
| Dimensions | 89 x 38 x 76 mm |
| Warranty | 12 months |
| Certifications | CE, RoHS, UL |
| SKU / MPN | 750D13TCD2GA |
| What’s in the box | Vacuum Pressure Sensor, Calibration Certificate, User Manual |
| Pressure Range | 0-10 Torr |
| Sensor Type | Capacitance Manometer (Baratron) |
| Accuracy | 0.12% of Reading |
| Output Signal | 0-10V DC |
| Fitting Type | Swagelok 1/2 inch |
| Operating Temperature | 0 to 50°C |
Key benefits: Exceptional measurement accuracy, excellent long-term stability, low noise output, robust construction, wide compatibility with process controllers
Typical applications: Semiconductor fabrication, vacuum coating systems, freeze drying, vacuum furnace control, leak detection, thin film deposition
Lifecycle: Active product, currently in production with 10+ years availability
