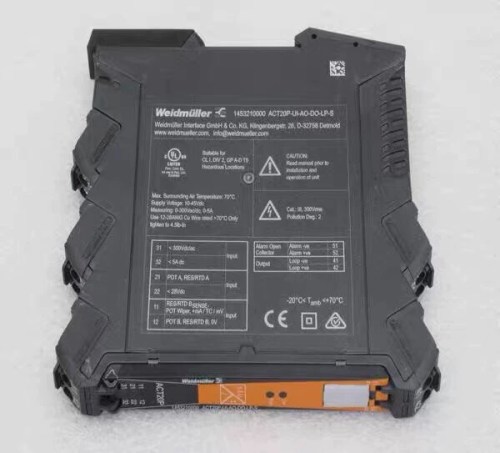

🔍 Hover to zoomHigh-precision universal input signal isolator with loop power and combined analog/digital outputs for safe, reliable signal conditioning in industrial processes
| Brand | Weidmuller |
| Model | ACT20P-UI-AO-DO-LP-S 1453210000 |
| Voltage | 24V DC loop powered |
| Country of Origin | Germany |
| Weight | 0.15 kg |
| Dimensions | 92.4 x 17.5 x 112.4 mm |
| Warranty | 24 months |
| Certifications | CE, UL, ATEX, IECEx, GL |
| SKU / MPN | 1453210000 |
| What’s in the box | Signal isolator unit, user manual, calibration certificate |
| Input Signal | Universal (0/4-20mA, 0-10V, RTD, TC) |
| Output Signal | 0/4-20mA analog + relay digital output |
| Supply Voltage | 24V DC loop powered |
| Accuracy | 0.1% of full scale |
| Isolation | 3-way galvanic isolation 2.5 kV |
| Mounting | DIN Rail TS35 |
Key benefits: Universal input accepts mA, V, RTD and TC signals, 3-way 2.5 kV galvanic isolation, loop-powered design eliminates need for separate supply, integrated analog and digital outputs, slim 17.5mm housing saves cabinet space, ATEX/IECEx certified for hazardous areas
Typical applications: Process signal isolation in chemical plants, hazardous area instrumentation, SCADA and DCS signal conditioning, temperature transmitter isolation, motor control centers, oil and gas refineries, water treatment facilities
Lifecycle: Active product, long-term availability with Weidmuller lifecycle management
