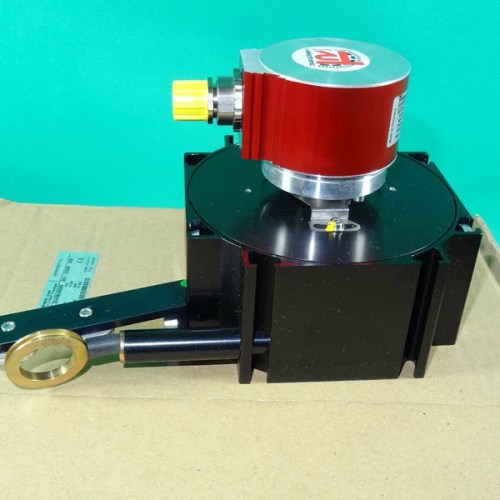

🔍 Hover to zoomCompact and rugged draw wire encoder for reliable linear position measurement in demanding industrial environments
| Brand | TR |

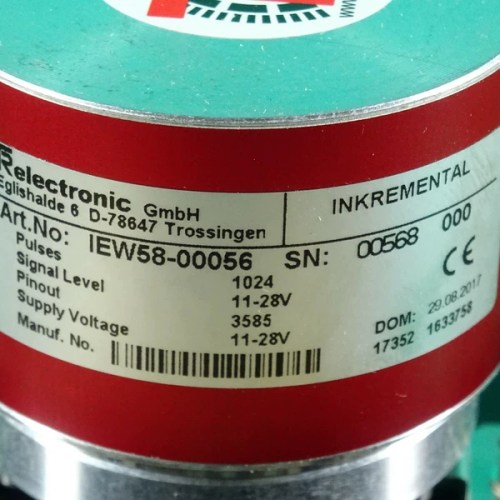

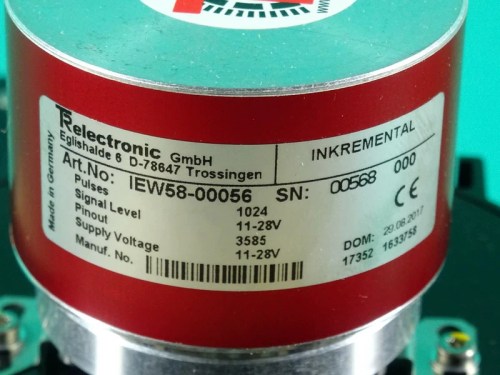

| Model | IEW58‑00056 |
| Voltage | 24V DC |
| Country of Origin | Germany |
| Weight | 0.6 kg |
| Dimensions | 82 x 82 x 45 mm |
| Warranty | 12 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | IEW58‑00056 |
| What’s in the box | Draw Wire Encoder unit, mounting hardware, calibration certificate, user manual |
| Measurement Range | 1400 mm (56 in) |
| Output Signal | Incremental HTL/TTL |
| Resolution | 0.1 mm per pulse |
| Protection Class | IP65 |
| Wire Material | Stainless steel, PA coated |
| Operating Temperature | -20 °C to +70 °C |
Key benefits: High accuracy linear measurement, robust IP65 housing, flexible incremental output, stainless steel wire, easy installation, long service life
Typical applications: Hydraulic cylinder stroke measurement, crane and hoist positioning, elevator level control, valve position feedback, conveyor and lifting systems, mobile equipment monitoring
Lifecycle: Active product, long-term availability with full manufacturer support
