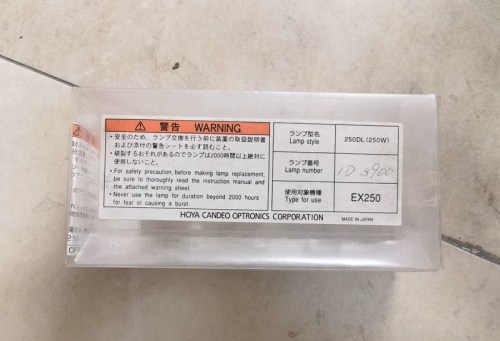

π Hover to zoomHigh-output 250W double-ended mercury UV lamp engineered for reliable industrial curing, drying, and sterilization processes
| Brand | HOYA |
| Model | 250DL |
| Voltage | 120V / 240V (lamp-specific ballast required) |
| Country of Origin | Japan |
| Weight | 0.15 kg |
| Dimensions | 15 mm diameter x 350 mm length |
| Warranty | 6 months |
| Certifications | CE, RoHS |
| SKU / MPN | 250DL |
| Whatβs in the box | 1x HOYA 250DL UV Lamp, protective sleeve, installation guide |
| Power | 250 W |
| Lamp Type | Mercury UV (Double-ended) |
| Peak Wavelength | 365 nm |
| Bulb Life | 3000 hours |
| Base Type | Double-ended wire terminal |
| Operating Position | Universal / horizontal |
Key benefits: Consistent UV output, long service life of 3000 hours, double-ended design for stable arc, wide compatibility with UV curing systems, OEM-grade Japanese quality
Typical applications: UV curing for printing and coating lines, offset and screen printing, adhesive curing, surface sterilization, laboratory UV exposure, photolithography
Lifecycle: Active production, replacement consumable for HOYA UV systems
