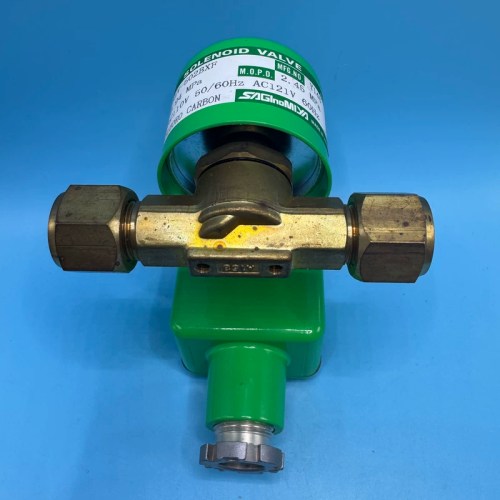

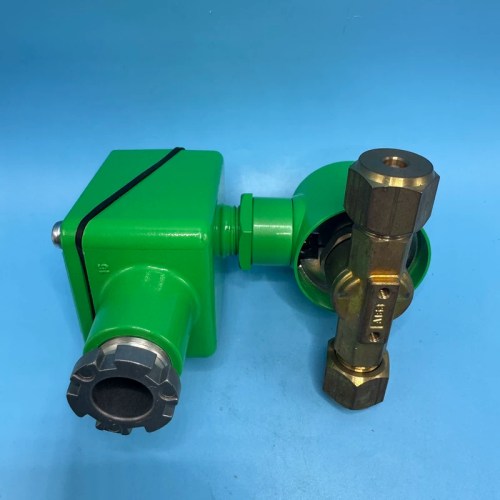

π Hover to zoomReliable Japanese-engineered solenoid valve for precision refrigerant flow control in commercial and industrial refrigeration systems
| Brand | SAGINOMIYA |
| Model | SEV-502BXF |
| Voltage | 220-240V AC 50/60Hz |
| Country of Origin | Japan |
| Weight | 0.6 kg |
| Dimensions | 120 x 70 x 60 mm |
| Certifications | CE, UL, CSA, JIS |
| SKU / MPN | SEV-502BXF |
| Whatβs in the box | Solenoid valve unit, mounting bracket, installation manual, wiring diagram |
| Valve Type | 2-Way Normally Closed |
| Port Size | 1/4 inch flare connection |
| Operating Pressure | 0.1 to 2.5 MPa |
| Fluid Media | HFC, HFO refrigerants, R-410A, R-32 |
| Ambient Temperature | -20Β°C to +60Β°C |
| Coil Insulation | Class F (155Β°C) |
Key benefits: Compact lightweight design, high pressure tolerance, compatible with modern low-GWP refrigerants, long service life with low power consumption, fast response time, leak-proof sealing
Typical applications: Commercial refrigeration systems, cold storage rooms, chiller units, HVAC control circuits, freezer compressors, air conditioning systems, heat pump installations
Lifecycle: Active product line, typically 10+ years availability with ongoing manufacturer support
