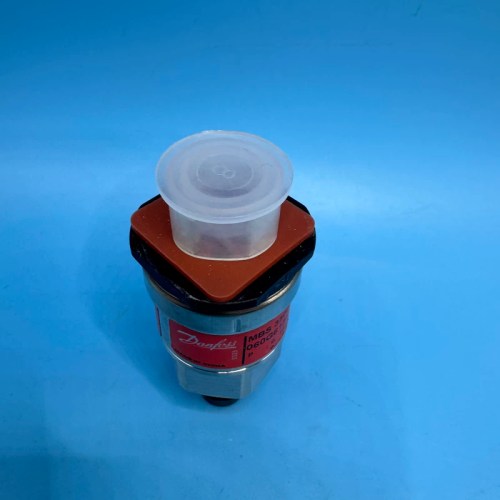

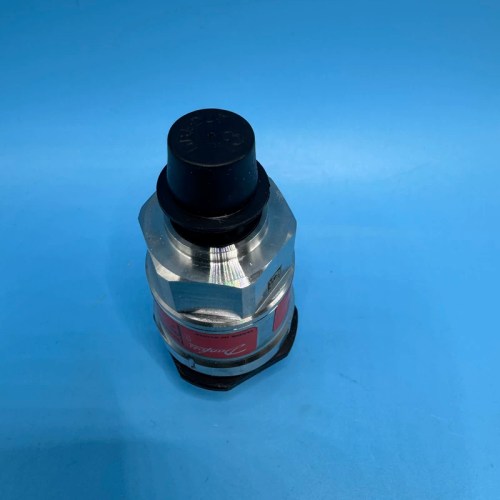

🔍 Hover to zoomHeavy-duty pressure transmitter for demanding industrial hydraulic and process applications with reliable 4-20 mA output
| Brand | Danfoss |
| Model | MBS3300 060G6134 |
| Voltage | 24V DC (10-30V DC range) |
| Country of Origin | Denmark |
| Weight | 0.4 kg |
| Dimensions | Approx. 80 x 60 x 30 mm |
| Certifications | CE, UL, ATEX, RoHS |
| SKU / MPN | 060G6134 |
| What’s in the box | Pressure transmitter, calibration certificate, user manual, protective cap |
| Pressure Range | 0 to 600 bar |
| Output Signal | 4-20 mA |
| Process Connection | G1/4 male (DIN 3852-E) |
| Operating Temperature | -40 to +85 °C |
| Ingress Protection | IP67 |
| Accuracy | ±0.5% FS (typical) |
Key benefits: High accuracy and stability, robust stainless steel construction, wide operating temperature range, IP67 protection, versatile process connection, long-term reliability in harsh environments
Typical applications: Hydraulic systems, pumps and compressors, process control, test benches, marine equipment, energy management, machine tools, refrigeration systems
Lifecycle: Active product, long-term availability within Danfoss industrial sensor portfolio
