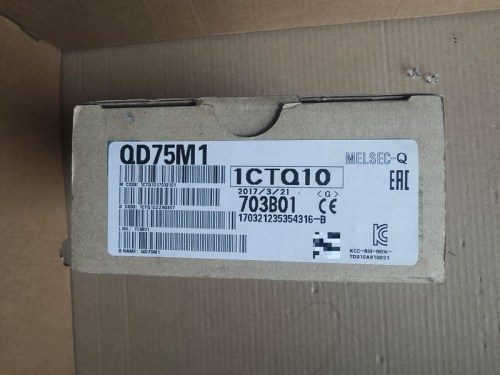

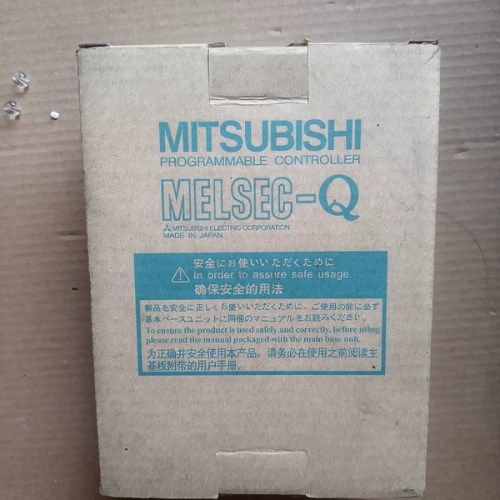

Industrial Motion Control Solution Mitsubishi QD75M1 Module

QD75M1
☆☆☆☆☆No reviews yet
Price on Request
💳 Buy Now
  • ✓ Product sourcing and condition details are provided based on the available supplier information for each item
  • ✓ Inspection and documentation details vary by product and can be shared when available
  • ✓ Warranty, return and replacement terms are confirmed in the quotation or order details
  • ✓ Shipping options, carriers and delivery estimates depend on the destination and order requirements
  • ✓ Cross-reference and alternate-part requests can be reviewed based on available technical information

Mitsubishi QD75M1

High-precision single-axis positioning module for MELSEC-Q PLC systems enabling accurate motion control of servo and stepper motors

Brand Mitsubishi
Model QD75M1
Voltage 5V DC (backplane)
Country of Origin Japan
Weight 0.2 kg
Dimensions 98 x 27.4 x 90 mm
Warranty 6 months
Certifications CE, UL, cUL
SKU / MPN QD75M1
What’s in the box QD75M1 Positioning Module, mounting screws, user manual, connector terminals
Series MELSEC-Q
Number of Axes 1 axis
Control Output Differential driver / Open collector
Max Pulse Output 200 kpps
Positioning Points 600 data per axis
Compatible Servo MELSERVO MR-J3 / MR-J4 series
Key benefits: Single-axis control up to 200 kpps, supports linear and S-curve acceleration, 600 positioning points per axis, seamless integration with MR-J3/J4 servos, easy programming via GX Works2
Typical applications: Packaging machinery, X-Y tables, labeling machines, conveyor synchronization, pick-and-place systems, semiconductor manufacturing, CNC auxiliary axes
Lifecycle: Active product, long-term availability supported by Mitsubishi Electric
