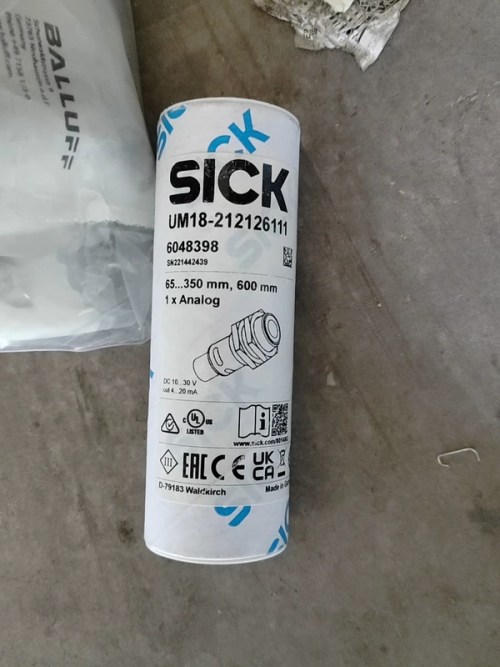

π Hover to zoomReliable M18 ultrasonic proximity sensor for precise non-contact distance detection in industrial environments
| Brand | SICK |
| Model | UM18-212126111 6048398 |
| Voltage | 10-30V DC |
| Country of Origin | Germany |
| Weight | 0.15 kg |
| Dimensions | M18 x 75 mm |
| Warranty | 24 months |
| Certifications | CE, UL, RoHS, cULus |
| SKU / MPN | 6048398 |
| Whatβs in the box | Ultrasonic sensor unit, mounting nuts, instruction manual |
| Sensing Range | 30-250 mm |
| Output Type | PNP NO (push-pull) |
| Switching Frequency | 10 Hz |
| Connection | M12 4-pin connector |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
Key benefits: Compact M18 housing, immune to dust and color, accurate detection of transparent and reflective objects, PNP switching output, IP67 rated for harsh conditions, easy installation with M12 connector
Typical applications: Level monitoring in tanks, object detection on conveyors, presence detection in packaging lines, distance measurement in material handling, fill level control in process automation
Lifecycle: Active product, long-term availability through SICK global distribution
