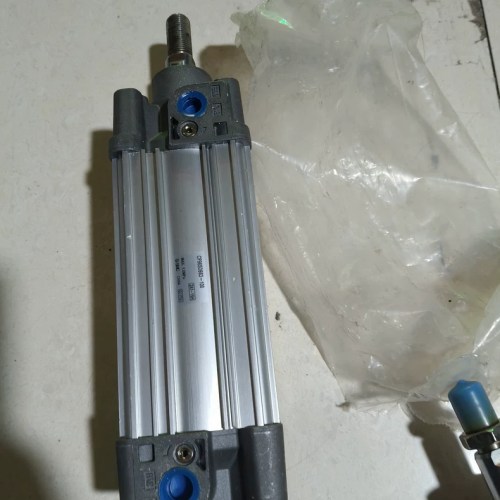

π Hover to zoomHigh-performance ISO 15552 pneumatic cylinder delivering reliable linear motion for industrial automation applications
| Brand | SMC |
| Model | CP96SDB63-100 |
| Voltage | Not specified (Pneumatic β 0.1-1.0 MPa) |
| Country of Origin | Japan |
| Weight | 2.8 kg |
| Dimensions | 63 mm bore x 100 mm stroke, ISO 15552 profile |
| Warranty | 12 months |
| Certifications | CE, ISO 15552 compliant |
| SKU / MPN | CP96SDB63-100 |
| Whatβs in the box | 1x Pneumatic Cylinder CP96SDB63-100, mounting hardware, user manual |
| Bore Size | 63 mm |
| Stroke Length | 100 mm |
| Series | CP96 (ISO 15552) |
| Action Type | Double Acting, Single Rod |
| Operating Pressure | 0.1 β 1.0 MPa (1 β 10 bar) |
| Port Size | G3/8 |
Key benefits: ISO 15552 standard compliance, double-acting design, robust aluminum profile barrel, integrated cushioning, wide pressure range, long service life
Typical applications: Material handling, assembly lines, packaging machinery, automotive manufacturing, press operations, pick-and-place systems
Lifecycle: Active product, expected 10+ years availability with full SMC support
