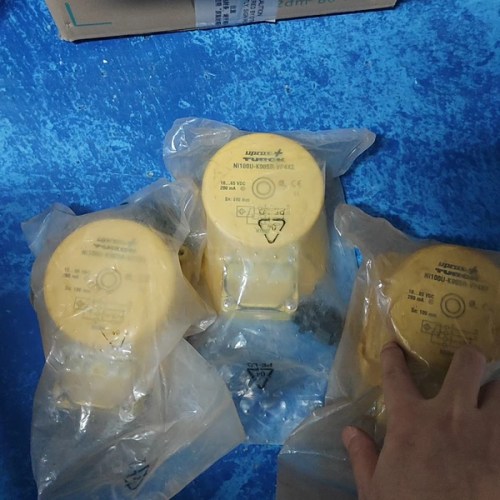

π Hover to zoomRugged Uprox factor 1 inductive proximity sensor with extended 100mm switching range for reliable non-contact detection in demanding industrial environments
| Brand | TURCK |
| Model | Ni100U-K90SR-VP4X2 |
| Voltage | 10-30 V DC |
| Country of Origin | Germany |
| Weight | 0.35 kg |
| Dimensions | 90 x 40 x 40 mm |
| Certifications | CE, UL, cULus, IECEx, ATEX |
| SKU / MPN | Ni100U-K90SR-VP4X2 |
| Whatβs in the box | Proximity Switch, mounting hardware, installation guide |
| Sensor Type | Uprox Inductive Proximity Sensor (Factor 1) |
| Sensing Range | 100 mm |
| Output Type | 4-Wire DC PNP, NO/NC Complementary |
| Switching Frequency | 150 Hz |
| Housing Style | K90 Rectangular Block |
| Connection Type | Terminal Chamber / Cable Gland |
Key benefits: Extended 100mm sensing range, factor 1 detection of all metals, IP67 protection rating, complementary NO/NC PNP output, wide 10-30V DC operating range, robust K90 block housing, German engineering quality
Typical applications: Conveyor systems, material handling, automotive assembly lines, machine tool position detection, packaging equipment, metal detection in harsh industrial environments
Lifecycle: Active production, expected 10+ years availability
