🔍 Hover to zoomHigh-power RC-IGCT module for demanding medium-voltage power conversion applications with integrated freewheeling diode and exceptional switching performance
| Brand | ABB |

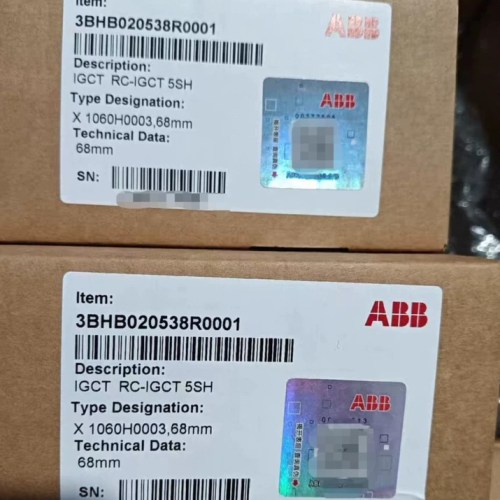

| Model | 3BHB020538R0001 X1060H0003 RC-IGCT |
| Voltage | 4500 V |
| Country of Origin | Switzerland |
| Weight | 2.8 kg |
| Dimensions | 120 x 100 x 50 mm |
| Certifications | CE, IEC 60747, RoHS |
| SKU / MPN | 3BHB020538R0001 |
| What’s in the box | RC-IGCT module, gate unit connector, mounting hardware, datasheet |
| Device Type | Reverse Conducting IGCT |
| Blocking Voltage | 4500 V |
| Average Current | 1060 A |
| Turn-off Current | 3000 A |
| Operating Temperature | -40 to +125 °C |
| Package Type | Press-pack |
Key benefits: Integrated reverse conduction, low conduction losses, high power density, press-pack housing for double-sided cooling, robust short-circuit capability, long service life
Typical applications: Medium-voltage drives, HVDC transmission, STATCOM systems, industrial rectifiers, wind turbine converters, traction drives, high-power inverters
Lifecycle: Active product, long-term availability guaranteed for industrial infrastructure projects
