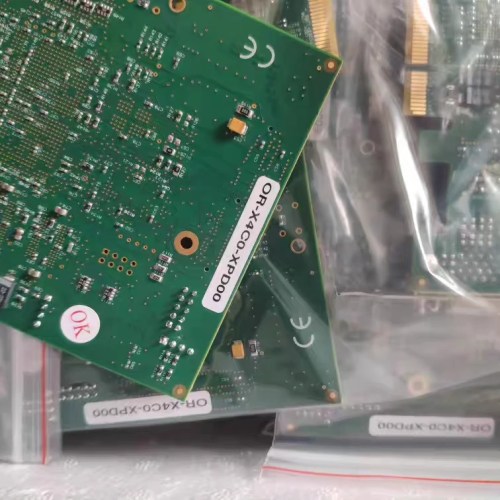

🔍 Hover to zoomHigh-performance Camera Link frame grabber designed for demanding machine vision applications requiring reliable, high-speed image acquisition from industrial cameras.
| Brand | DALSA |
| Model | OR-X4C0-XPD00 |
| Voltage | +12V DC via PCIe bus (optional external power) |
| Country of Origin | Canada |
| Weight | 0.25 kg |
| Dimensions | 167.65 x 111.15 mm (Half-length PCIe card) |
| Certifications | CE, FCC, RoHS, UL |
| SKU / MPN | OR-X4C0-XPD00 |
| What’s in the box | DALSA OR-X4C0-XPD00 frame grabber card, Camera Link cable(s), installation CD with drivers, quick start guide, warranty card |
| Interface | Camera Link (Base/Medium/Full configuration) |
| Bus Type | PCI Express x4 (Gen 2) |
| Acquisition Rate | Up to 850 MB/s |
| Camera Support | Area scan and line scan monochrome/color |
| Number of Channels | 1 or 2 independent Camera Link channels |
| Operating System Support | Windows 10/11 (64-bit), Linux (x86_64) |
Key benefits: High bandwidth up to 850 MB/s, flexible Camera Link support (Base/Medium/Full), robust PCIe Gen 2 x4 interface, support for both area and line scan cameras, wide OS compatibility, and proven DALSA/Teledyne reliability for industrial environments.
Typical applications: Automated optical inspection (AOI), semiconductor inspection, flat panel display inspection, PCB inspection, 3D metrology, scientific imaging, robotics vision, print inspection, and high-speed production line quality control.
Lifecycle: Active product, supported by Teledyne DALSA with long-term availability and firmware updates.
