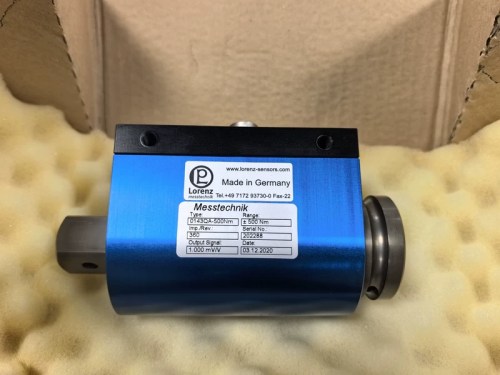

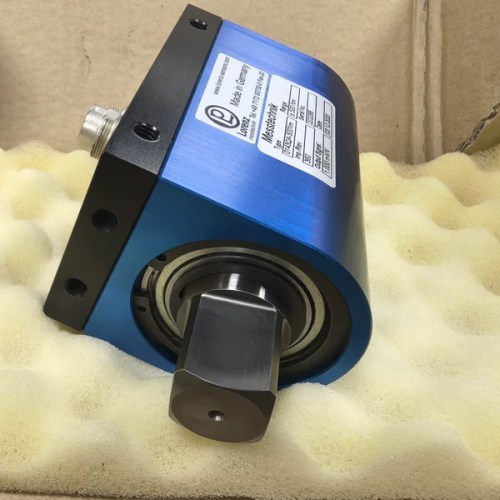

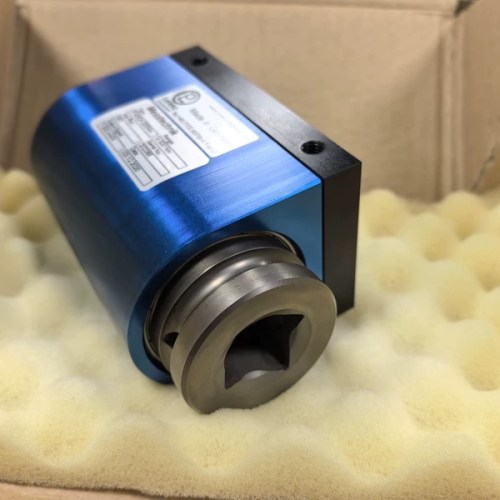

🔍 Hover to zoomHigh-precision 500 Nm rotary torque sensor for reliable dynamic and static torque measurement in industrial test benches and process monitoring applications.
| Brand | Lorenz |
| Model | 0143QA-500Nm 202288 |
| Voltage | 24V DC |
| Country of Origin | Germany |
| Weight | 3.2 kg |
| Dimensions | 180 x 80 x 80 mm |
| Certifications | CE, ISO 9001, RoHS |
| SKU / MPN | 0143QA-500Nm 202288 |
| What’s in the box | Torque Sensor, Calibration Certificate, User Manual, Connector Cable |
| Torque Range | 0 to 500 Nm |
| Accuracy Class | 0.1% |
| Output Signal | Analog / Frequency |
| Operating Temperature | -20 to +80 °C |
| Rotational Speed | Up to 6000 rpm |
| Shaft Connection | Flange Mount |
Key benefits: German engineering precision, wide torque range up to 500 Nm, high rotational speed capability, robust flange mounting, excellent long-term stability, integrated signal conditioning
Typical applications: Electric motor testing, drivetrain development, pump and compressor validation, e-mobility powertrain testing, production line torque monitoring, R&D laboratories
Lifecycle: Active product, expected availability 7+ years
