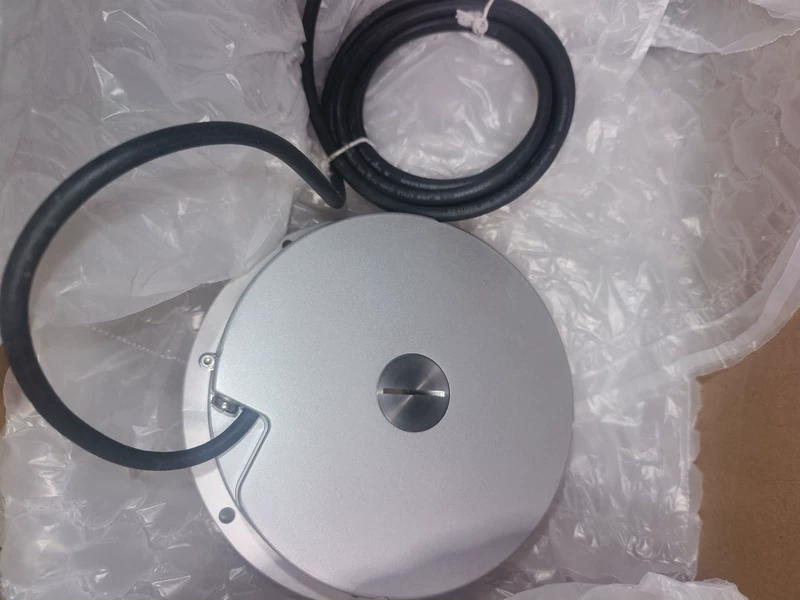

Heidenhain Rotary Encoder ROD780C 36000 ID383600-22
High-precision rotary encoder offering 36,000 pulses per revolution for accurate position feedback in industrial automation.
| Brand | Heidenhain |
| Model | ROD780C |
| Voltage | 5 V DC |
| Country of Origin | Germany |
| Weight | Approx. 0.5 kg |
| Dimensions | Ø 58 mm x 40 mm (Diameter x Length) |
| Warranty | 12 months |
| Certifications | CE, RoHS |
| SKU / MPN | ID383600-22 |
| What’s in the box | ROD780C rotary encoder, mounting hardware, user manual |
| Resolution | 36,000 pulses per revolution |
| Output Type | Incremental TTL signals |
| Max Speed | 12,000 rpm |
| Operating Temperature | -20°C to +85°C |
| Shaft Diameter | 10 mm |
| Protection Class | IP64 |
Key benefits: Provides extremely high resolution and reliable position feedback with robust construction suitable for harsh industrial environments.
Typical applications: Used in CNC machines, robotics, automation systems, and precision measurement equipment.
Order number: Heidenhain Rotary Encoder ROD780C 36000 ID383600-22
Lifecycle: Active product with ongoing manufacturer support
Documentation: Detailed datasheet and installation manual available from Heidenhain website
