Description

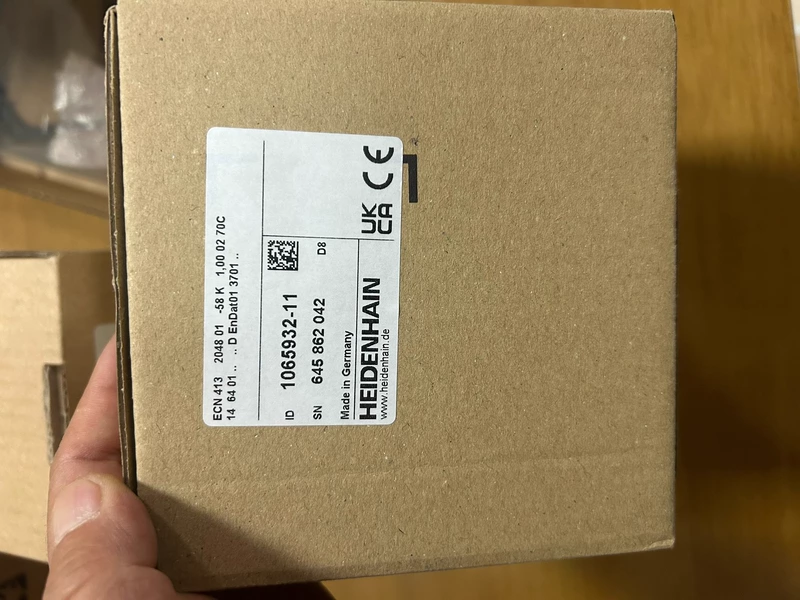

HEIDENHAIN ECN413 2048 Encoder Model 01-58K 1000 02 70C1065932-11
High-precision rotary encoder delivering reliable position feedback with 2048 pulses per revolution for industrial automation.
| Brand | HEIDENHAIN |
| Model | ECN413 01-58K 1000 02 |
| Voltage | 5 V DC |
| Country of Origin | Germany |
| Weight | Approx. 0.3 kg |
| Dimensions | Ø 58 mm x 41 mm length |
| Warranty | 12 months manufacturer warranty |
| Certifications | CE, RoHS |
| SKU / MPN | 70C1065932-11 |
| What’s in the box | Encoder unit, mounting hardware, user manual |
| Resolution | 2048 pulses per revolution (PPR) |
| Output Type | Incremental TTL signals |
| Operating Temperature | -10°C to +85°C |
| Shaft Diameter | 10 mm |
| Max Speed | 6000 RPM |
| Interface | Two-channel quadrature output |
Key benefits: Provides accurate and reliable position feedback with robust construction for long service life in demanding industrial environments.
Typical applications: Used in CNC machines, robotics, automation systems, and precision measurement equipment.
Order number: HEIDENHAIN ECN413 2048 Encoder Model 01-58K 1000 02 70C1065932-11
Lifecycle: Active product, currently in production and supported.
Documentation: Available datasheets and installation manuals from HEIDENHAIN official website.
Linda B. –
Good technical parameters, exactly as datasheet. Easy to commission.
