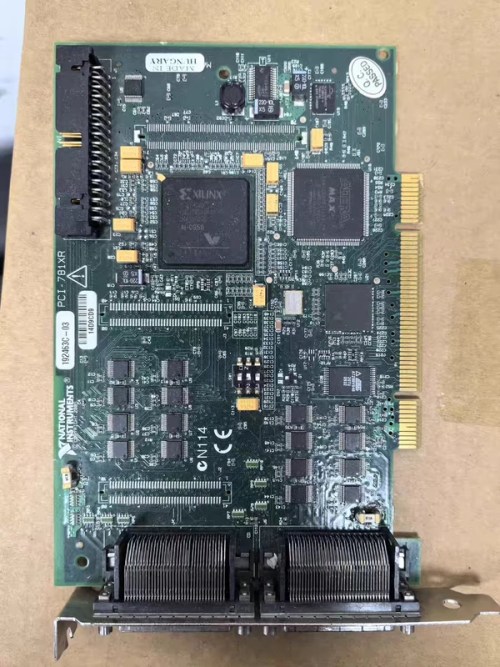

🔍 Hover to zoomFPGA-based digital I/O board for high-speed custom logic and parallel processing in test, measurement, and control applications
| Brand | National Instruments |
| Model | PCI-7813R |
| Voltage | 5V DC (via PCI slot) |
| Country of Origin | USA |
| Weight | 0.23 kg |
| Dimensions | 174 x 107 mm (standard PCI card) |
| Certifications | CE, FCC, RoHS |
| SKU / MPN | PCI-7813R |
| What’s in the box | PCI-7813R board only |
| FPGA | Xilinx Virtex-II 1M gates |
| Digital I/O Lines | 160 (80 DIO per connector) |
| Logic Level | 3.3V / 5V TTL compatible |
| Onboard Memory | 64 MB DRAM |
| Bus Interface | PCI 32-bit, 33 MHz |
| Reconfigurability | User-programmable via LabVIEW FPGA |
Key benefits: User-reconfigurable FPGA, 160 digital I/O lines, deterministic hardware execution, custom timing and triggering, LabVIEW FPGA integration, parallel processing capability
Typical applications: Custom digital protocol emulation, high-speed data acquisition, hardware-in-the-loop simulation, digital pattern generation, motor control, sensor interfacing, prototype development
Lifecycle: Discontinued (Mature/legacy NI R Series product, supported by NI for existing users)
