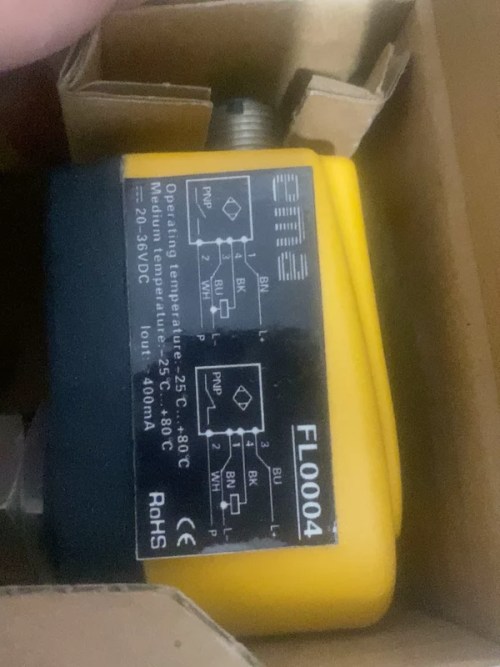

π Hover to zoomReliable and compact flow switch for accurate liquid flow detection in industrial systems
| Brand | ema |
| Model | FL0004 |
| Voltage | 24V DC |
| Country of Origin | Italy |
| Weight | 0.4 kg |
| Dimensions | 120 x 70 x 55 mm |
| Certifications | CE, IP65, RoHS |
| SKU / MPN | FL0004 |
| Whatβs in the box | ema FL0004 Flow Switch, installation manual, mounting bracket |
| Flow Range | 0.5 β 8 L/min |
| Process Connection | G1/2 inch |
| Housing Material | Brass, nickel-plated |
| Output Type | SPDT Relay, 3A/250VAC |
| Max Working Pressure | 10 bar |
| Operating Temperature | -10 Β°C to +80 Β°C |
Key benefits: Compact design, easy installation, reliable SPDT relay output, brass construction, wide flow range, IP65 protection
Typical applications: Cooling circuits, pump protection, HVAC systems, water treatment, lubrication lines, industrial process control
Lifecycle: Active product, long-term availability
