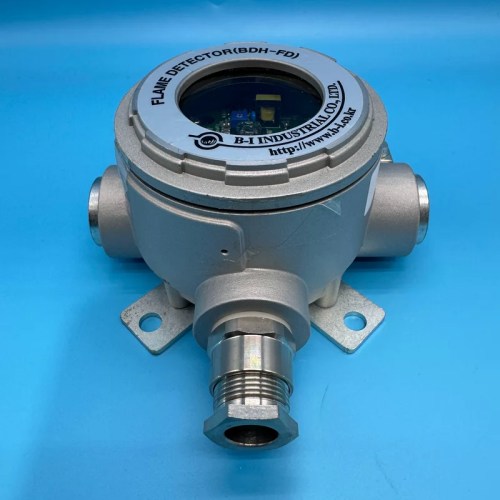

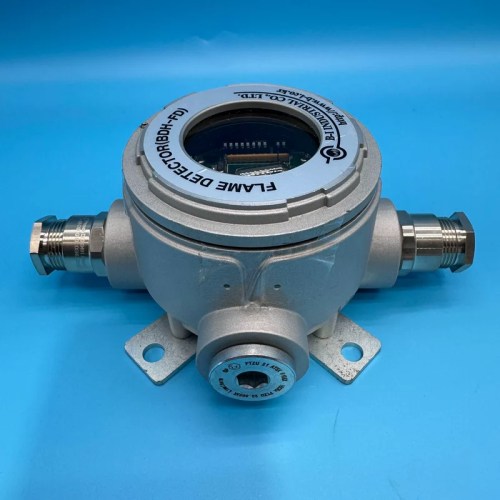

π Hover to zoomReliable dual-spectrum flame detection for hazardous industrial environments with fast response and low false alarm rate
| Brand | B-I |
| Model | BDH-FD |
| Voltage | 24V DC |
| Country of Origin | Not specified |
| Weight | 1.5 kg |
| Dimensions | 120 x 120 x 90 mm |
| Certifications | ATEX, IECEx, CE, FM |
| SKU / MPN | BDH-FD |
| Whatβs in the box | Flame Detector, Mounting Bracket, Calibration Tool, User Manual, Certificate of Conformity |
| Detection Type | Dual UV/IR (Ultraviolet & Infrared) |
| Spectral Range | UV 185-260 nm, IR 4.4 Β΅m |
| Response Time | < 5 seconds |
| Field of View | 90Β° horizontal cone |
| Output Signal | 4-20 mA, Relay (SPDT), RS-485 Modbus |
| Operating Temperature | -40 Β°C to +75 Β°C |
Key benefits: Dual UV/IR sensing for enhanced accuracy, fast <5s response time, rugged ATEX/IECEx certified housing, wide operating temperature range, versatile 4-20mA and relay outputs
Typical applications: Oil & gas platforms, petrochemical plants, fuel storage terminals, power generation turbines, painting booths, LNG facilities, hangar fire protection
Lifecycle: Active product, expected 10+ year availability with full manufacturer support
