π Hover to zoomHigh-precision piezoelectric cylinder pressure sensor for accurate in-cylinder combustion analysis in research and development environments
| Brand | Kistler |
| Model | 6118CC-4CQ01 |
| Voltage | Charge output (piezoelectric) |
| Country of Origin | Switzerland |
| Weight | 20 g |
| Dimensions | M5 x 0.5 thread, 28 mm length |
| Warranty | 24 months |
| Certifications | CE, IP67, RoHS |
| SKU / MPN | 6118CC-4CQ01 |

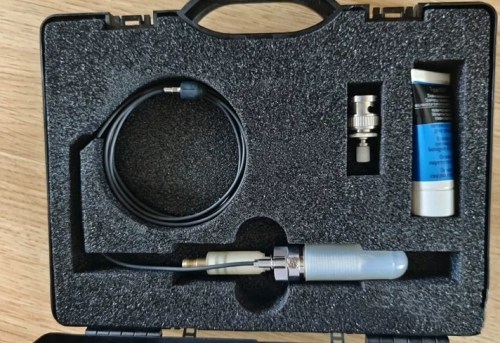

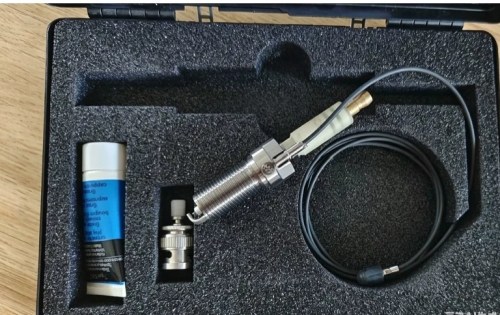

| Whatβs in the box | Pressure sensor, integral cable, calibration certificate, user manual |
| Sensor Type | Piezoelectric cylinder pressure sensor |
| Sensitivity | ~16 pC/bar |
| Pressure Range | 0-250 bar |
| Operating Temperature | -50Β°C to +400Β°C |
| Thread | M5 x 0.5 |
| Cable | Integrated, length per -4CQ01 option |
Key benefits: Wide operating temperature range, high sensitivity, robust design for harsh engine environments, excellent long-term stability, Swiss-engineered precision, integrated cable for easy installation
Typical applications: Engine R&D, combustion analysis, knock detection, cylinder pressure mapping, powertrain calibration, large engine monitoring, gas and diesel engine testing
Lifecycle: Active product, long-term availability, fully supported by Kistler global service network
Received the connectors and cables quickly. All items were as described.
Please contact us if you need product documentation or technical information.
