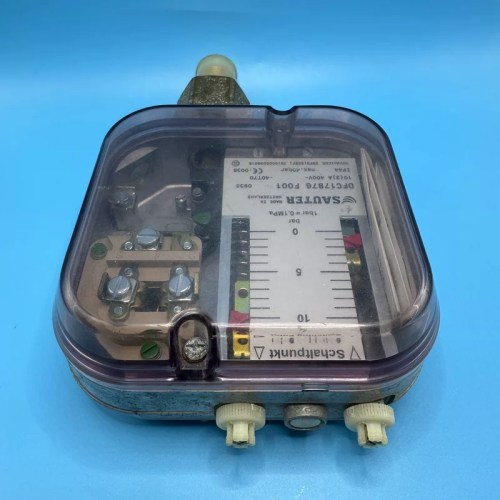

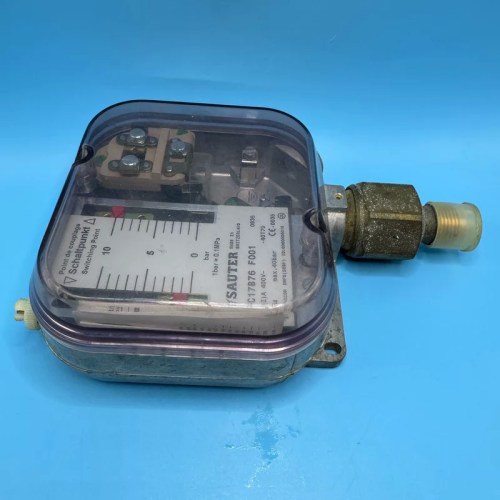

🔍 Hover to zoomReliable Swiss-engineered differential pressure switch for precise monitoring of airflow, filter status, and duct pressure in HVAC and building automation systems
| Brand | SAUTER |
| Model | DFC17B76 F001 |
| Voltage | 24V AC/DC |
| Country of Origin | Switzerland |
| Weight | 0.35 kg |
| Dimensions | 100 x 75 x 65 mm |
| Certifications | CE, RoHS, EN 60730 |
| SKU / MPN | DFC17B76 F001 |
| What’s in the box | Differential pressure switch, mounting bracket, installation manual |
| Pressure Range | 0.2 to 5.0 mbar |
| Switching Differential | Adjustable |
| Output | SPDT changeover contact |
| Contact Rating | 5A at 250V AC |
| Protection Class | IP54 |
| Operating Temperature | -20°C to +70°C |
Key benefits: High switching accuracy, robust IP54 housing, easy installation, long service life, adjustable setpoint, SPDT output for flexible integration
Typical applications: HVAC duct pressure monitoring, air filter clogging detection, fan and blower control, cleanroom pressure supervision, building management systems
Lifecycle: Active product with long-term availability, supported by SAUTER’s established service network
