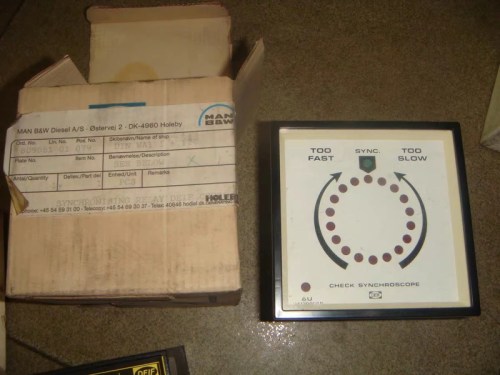

DEIF Synchronization Meter CSQ96 DK-4960 for Accurate Timing

CSQ96 DK-4960
โ˜…โ˜…โ˜…โ˜…โ˜†4.0 (1 review)
Price on Request
๐Ÿ’ณ Buy Now
  • โœ“ Product sourcing and condition details are provided based on the available supplier information for each item
  • โœ“ Inspection and documentation details vary by product and can be shared when available
  • โœ“ Warranty, return and replacement terms are confirmed in the quotation or order details
  • โœ“ Shipping options, carriers and delivery estimates depend on the destination and order requirements
  • โœ“ Cross-reference and alternate-part requests can be reviewed based on available technical information

DEIF CSQ96 DK-4960 Synchronization Meter for Power Systems

Manufacturer DEIF
Part Number CSQ96 DK-4960
Power Supply 100-690V AC (self-powered)
Made in Denmark
Mass 0.85 kg
Size 96 x 96 x 100 mm (panel cutout 92ร—92 mm)
$1 6 months
Approvals IEC 60068, IEC 61000, CE, UL/cUL recognized, DNV GL marine type approval
Catalog Number DEIF-CSQ96-DK4960
Package Contents 1x CSQ96 DK-4960 synchronization meter, 1x mounting bracket, 1x quick start guide, 1x calibration certificate
Measuring Accuracy Class 0.5 (voltage, frequency, phase angle)
Frequency Range 45-65 Hz
Phase Angle Resolution 0.1ยฐ
Operating Temperature -25ยฐC to +55ยฐC
Display Type LED bar graph with 3-color indication (red/green/yellow)
Protection Degree IP54 (front panel), IP30 (rear)
High-precision synchronization meter for critical power system paralleling, with marine-grade certifications and self-powered operation for reliable performance in harsh environments.
Key benefits: Accurate phase angle and frequency matching; robust design for industrial and marine use; easy panel mounting with clear LED indication; no external power supply needed.
Typical applications: Generator synchronization in power plants, marine vessels, emergency backup systems, and industrial microgrids.
Lifecycle: Active production, supported with firmware updates and spare parts for 10+ years.
