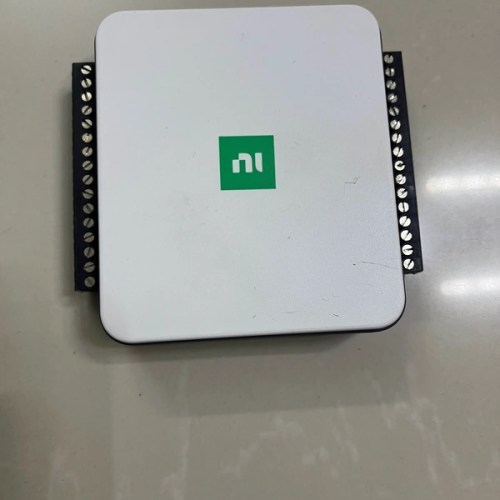

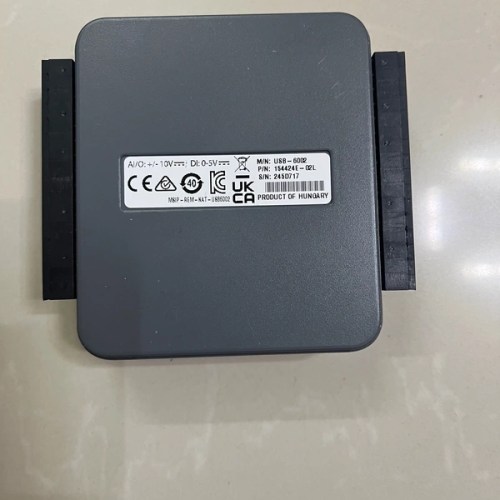

🔍 Hover to zoomAffordable, plug-and-play multifunction USB DAQ for basic measurement and signal generation tasks
| Brand | NI |
| Model | USB-6002 782606-01 |
| Voltage | 5V DC (USB powered) |
| Country of Origin | USA |
| Weight | 84 g |
| Dimensions | 95.25 x 86.36 x 22.86 mm |
| Certifications | CE, FCC, UL, RoHS |
| SKU / MPN | 782606-01 |
| What’s in the box | NI USB-6002 DAQ device, USB cable, screwdriver, getting started guide, NI-DAQmx software download |
| Analog Inputs | 8 single-ended / 4 differential, 16-bit, 100 kS/s |
| Analog Outputs | 2 channels, 16-bit, 5 kS/s |
| Digital I/O | 13 lines (8 DIO, 1 PFI, 2 event counters) |
| Counter | 1 x 32-bit |
| Interface | USB 2.0 Hi-Speed |
| Input Range | ±10 V (analog); 0-5 V (digital) |
Key benefits: No external power required, bus-powered USB, integrated signal conditioning, NI-DAQmx driver support, screw-terminal connectivity, portable compact form factor
Typical applications: Portable field data logging, academic lab experiments, classroom teaching, simple sensor measurement, low-channel-count test benches, prototype verification
Lifecycle: Active product, widely available with continued NI support
