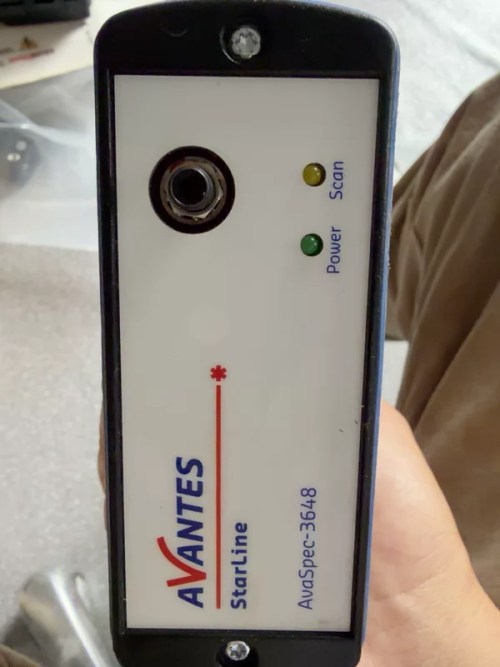

🔍 Hover to zoomHigh-sensitivity fiber optic spectrometer delivering reliable UV-Vis-NIR measurements for laboratory and field spectroscopy applications
| Brand | Avantes |
| Model | ULS3648-USB2 |
| Voltage | 5V DC (USB powered) |
| Country of Origin | Netherlands |
| Weight | 1.3 kg |
| Dimensions | 175 x 110 x 44 mm |
| Certifications | CE, RoHS |
| SKU / MPN | ULS3648-USB2 |
| What’s in the box | Spectrometer unit, USB cable, AvaSoft software CD, quick start guide |
| Detector | 3648-pixel CCD array |
| Wavelength Range | 200-1100 nm |
| Optical Design | Symmetrical Czerny-Turner |
| Focal Length | 75 mm |
| Interface | USB 2.0 |
| Stray Light | < 0.1% |
Key benefits: 3648-pixel CCD for high resolution, USB 2.0 plug-and-play connectivity, low stray light optical design, compact benchtop form factor, broad spectral range 200-1100 nm, compatible with AvaSoft software suite
Typical applications: Absorption spectroscopy, fluorescence measurements, Raman spectroscopy, color analysis, plasma monitoring, LIBS, biomedical research, food and beverage quality control
Lifecycle: Mature product line, compatible with current AvaSoft 8 software, replacement parts available
