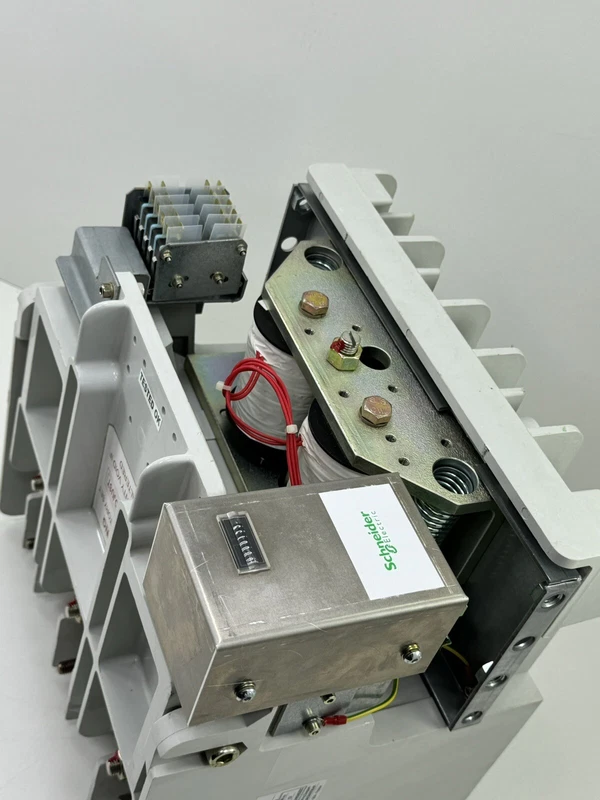

SCHNEIDER ELECTRIC CBX3-C-12-W2ADZZC VACUUM CONTACTOR 400A 12KV 74KVp
High-performance vacuum contactor designed for reliable switching in medium voltage applications up to 12kV and 400A.
| Brand | Schneider Electric |
| Model | CBX3-C-12-W2ADZZC |
| Voltage | 12 kV |
| Country of Origin | France |
| Weight | Approximately 45 kg |
| Dimensions | 600 mm x 400 mm x 350 mm (HxWxD) |
| Warranty | 2 years |
| Certifications | IEC 62271-100, CE, UL |
| SKU / MPN | CBX3-C-12-W2ADZZC |
| What’s in the box | Vacuum contactor unit, mounting hardware, user manual |
| Rated Current | 400 A |
| Rated Voltage | 12 kV |
| Rated Insulation Voltage | 74 kVp |
| Number of Poles | 3 |
| Operating Frequency | 50/60 Hz |
| Mechanical Endurance | 1,000,000 operations |
<
div class=”info-box”>
Key benefits: Provides reliable and efficient switching with high dielectric strength and long mechanical life, reducing maintenance and downtime in medium voltage electrical systems.
