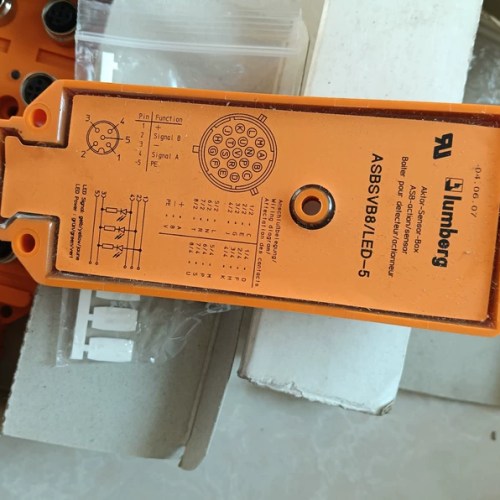

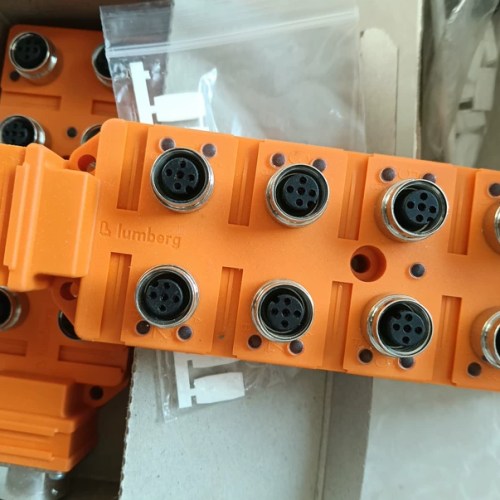

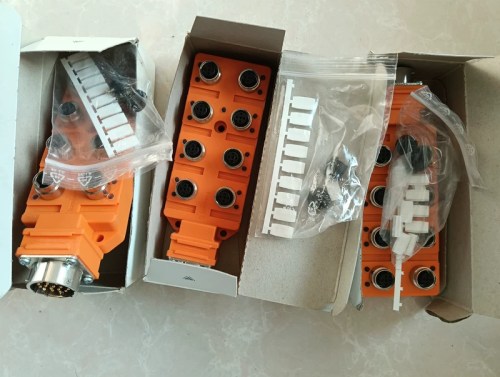

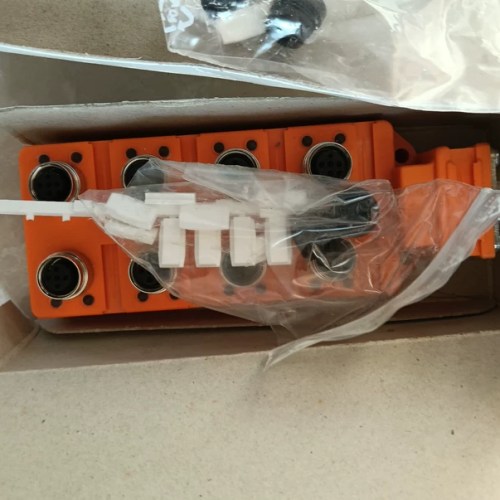

🔍 Hover to zoomRugged 8-port M12 bus distribution box with integrated LED status monitoring for reliable fieldbus and sensor/actuator networks in harsh industrial environments
| Brand | Lumberg |
| Model | ASBSV8/LED5-5 |
| Voltage | 24V DC |
| Country of Origin | Germany |
| Weight | 0.25 kg |
| Dimensions | 126 x 60 x 30 mm |
| Certifications | CE, UL, RoHS, IP67 |
| SKU / MPN | ASBSV8/LED5-5 |
| What’s in the box | Lumberg ASBSV8/LED5-5 bus connector, mounting screws, installation guide |
| Number of Ports | 8 M12 sockets |
| Pole Count | 5-pole (5-pin) |
| Status Indication | 5 LED indicators per port |
| Protection Class | IP67 |
| Connection Type | M12 A-coded female connectors |
| Operating Temperature | -25°C to +80°C |
Key benefits: IP67 sealed housing for harsh environments, 5-pole M12 connectivity, integrated LED diagnostics per port, compact field-mountable design, reliable signal distribution, vibration-resistant construction
Typical applications: PROFIBUS and fieldbus networks, automotive manufacturing lines, conveyor systems, packaging machinery, material handling equipment, process automation, machine tool control panels
Lifecycle: Active standard product, long-term availability guaranteed by Lumberg Automation
