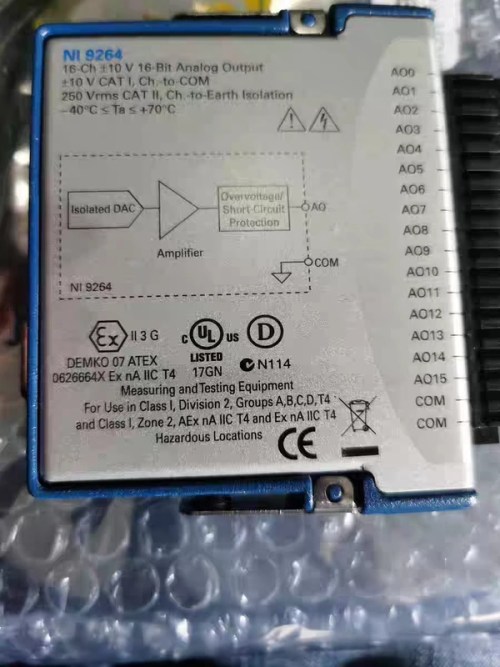

🔍 Hover to zoomHigh-density 16-channel 16-bit analog output module delivering precise ±10 V signals for demanding measurement and control applications
| Brand | NI |
| Model | 9264 779699-01 |
| Voltage | 24 V DC module power, ±10 V analog output range |
| Country of Origin | USA |
| Weight | 0.17 kg |
| Dimensions | 14.0 x 8.9 x 3.2 cm |
| Certifications | CE, FCC, UL, RoHS |
| SKU / MPN | 779699-01 |

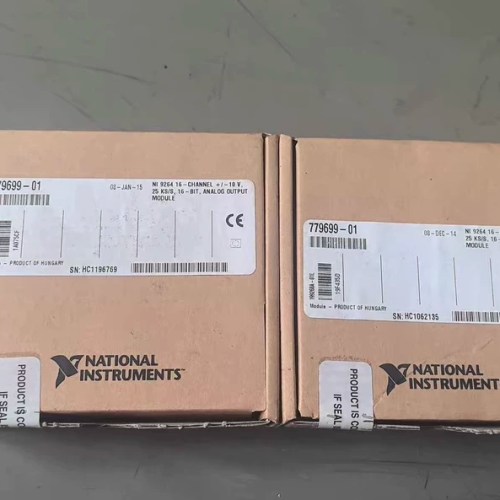

| What’s in the box | NI 9264 Analog Output Module, spring-terminal connector, safety documentation |
| Number of Channels | 16 analog outputs |
| Resolution | 16-bit |
| Output Range | ±10 V |
| Update Rate | 100 kS/s per channel |
| Compatibility | NI CompactDAQ and CompactRIO chassis |
| Connector Type | Spring-terminal |
Key benefits: 16 simultaneously updated analog outputs, 16-bit resolution, high channel density, plug-and-play integration with CompactDAQ/CompactRIO, reliable spring-terminal connection, rugged industrial design
Typical applications: Process control, factory automation test stands, actuator and valve control, hardware-in-the-loop simulation, motion control, data acquisition systems
Lifecycle: Active product, long-term availability supported by NI
